Voyager Spacecraft RTG Model

Currency:USD Category:Collectibles / Autographs Start Price:NA Estimated At:1,000.00 - 2,000.00 USD
Voyager Spacecraft RTG Model

Bidding Over

The auction is over for this lot.
The auctioneer wasn't accepting online bids for this lot.

Contact the auctioneer for information on the auction results.

Search for other lots to bid on...
Auction Date:2020 Apr 16 @ 18:00 (UTC-05:00 : EST/CDT)
Location:15th Floor WeWork, Boston, Massachusetts, 02108, United States
ALS - Autograph Letter Signed
ANS - Autograph Note Signed
AQS - Autograph Quotation Signed
AMQS - Autograph Musical Quotation Signed
DS - Document Signed
FDC - First Day Cover
Inscribed - “Personalized”
ISP - Inscribed Signed Photograph
LS - Letter Signed
SP - Signed Photograph
TLS - Typed Letter Signed

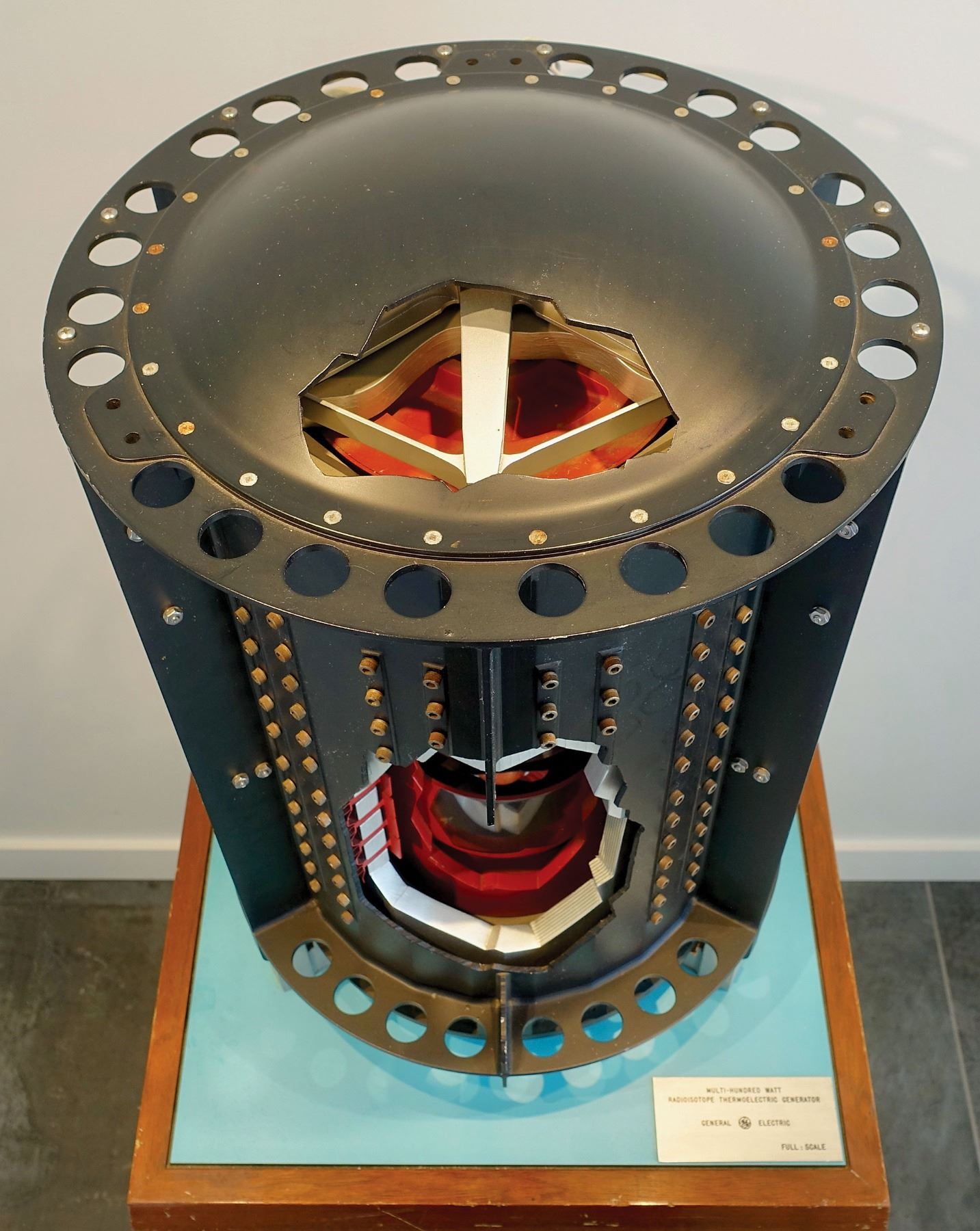

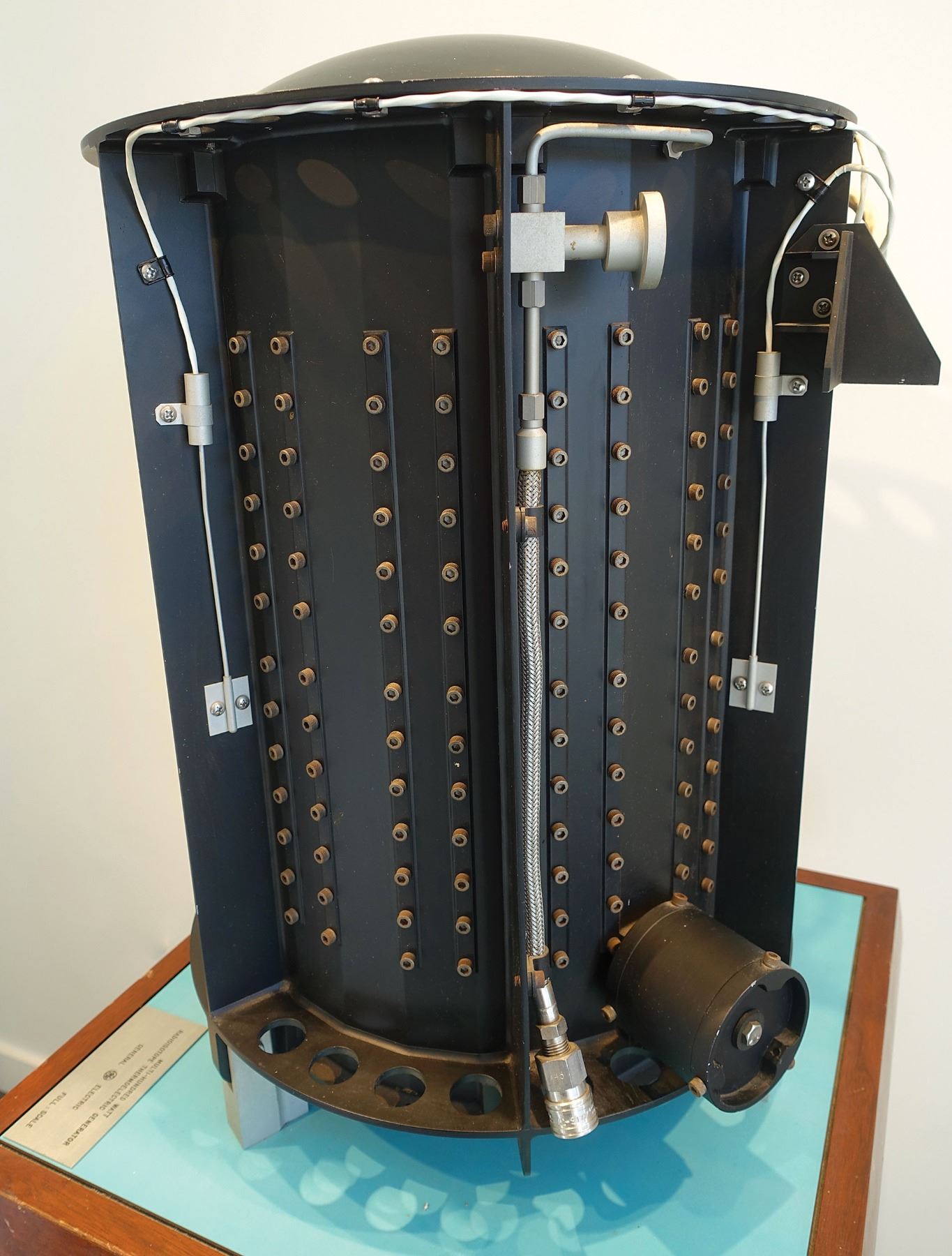

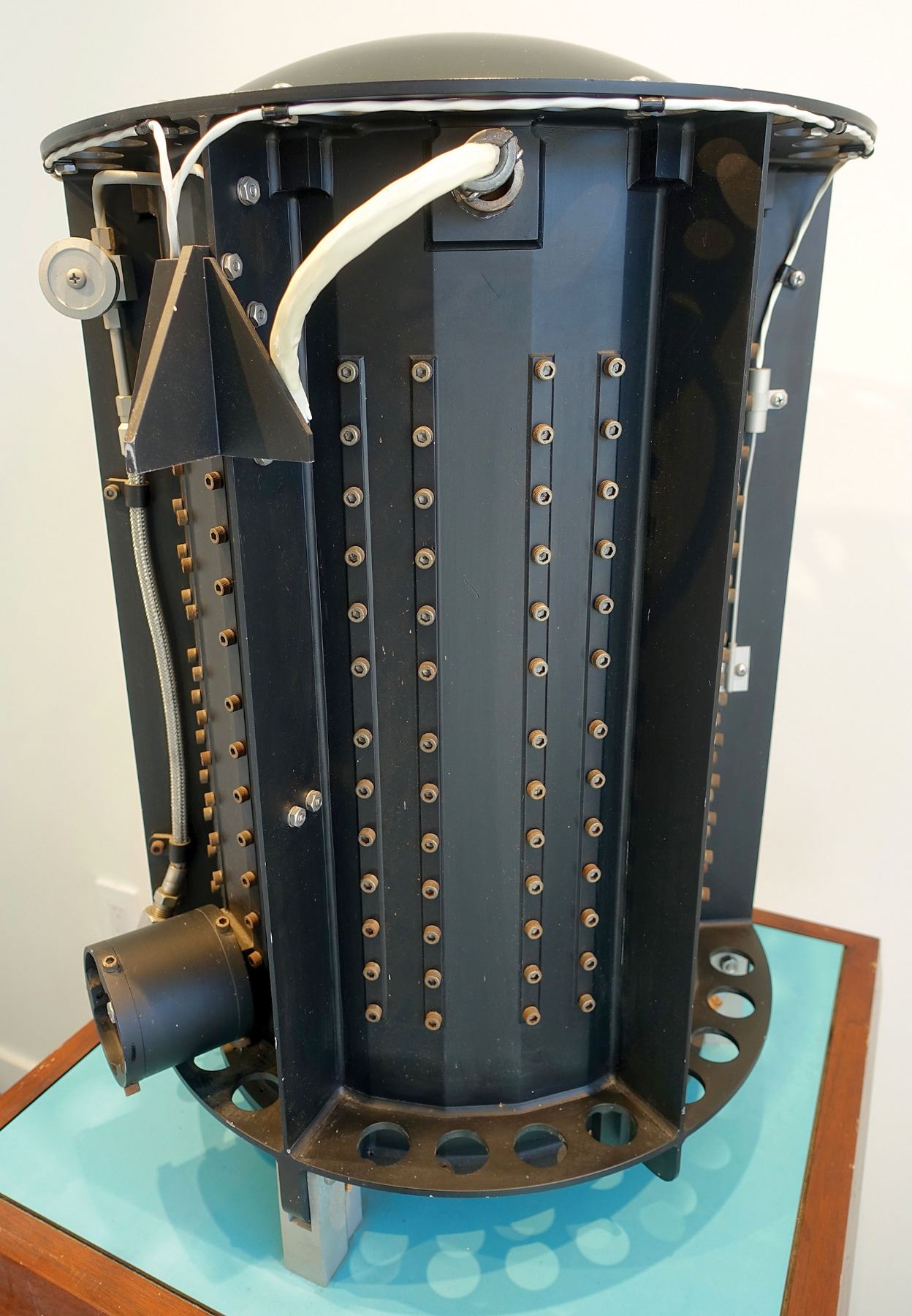

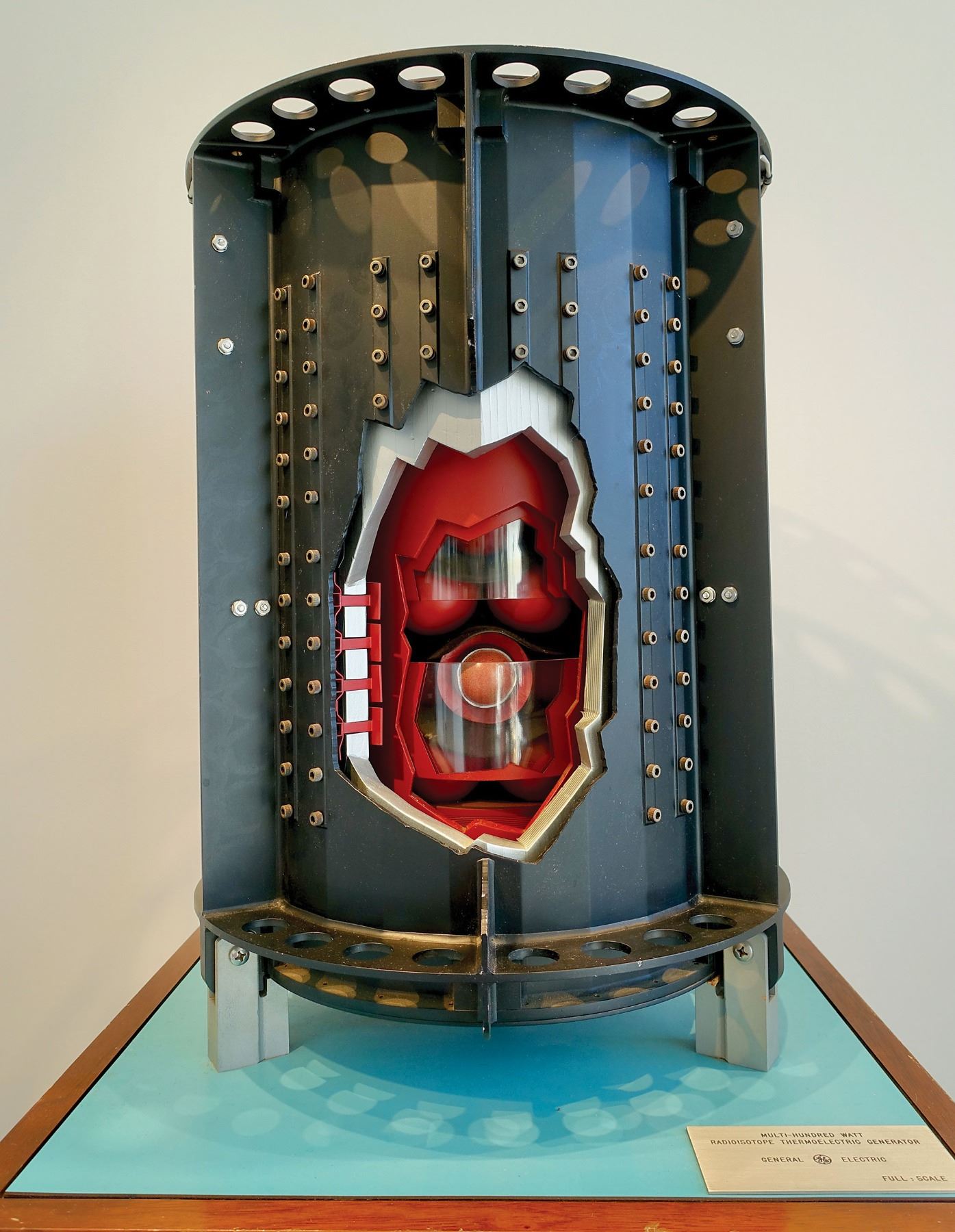

Exquisite full-scale contractor model of the deep-space Voyager spacecraft nuclear battery made for JPL, set upon a wood-framed base, measuring an overall 20? x 25.5? x 20?, and weighing 48 lbs; the RTG cylinder is 15.5” in diameter. The placard on the base reads: "Multihundred-Watt Radioisotope Thermoelectric Generator, General Electric, Full : Scale." The appealing 'cutaway' design of the model reveals the plutonium pellet core. In fine condition. The model will be crated and shipped from California; the buyer is responsible for all associated costs.

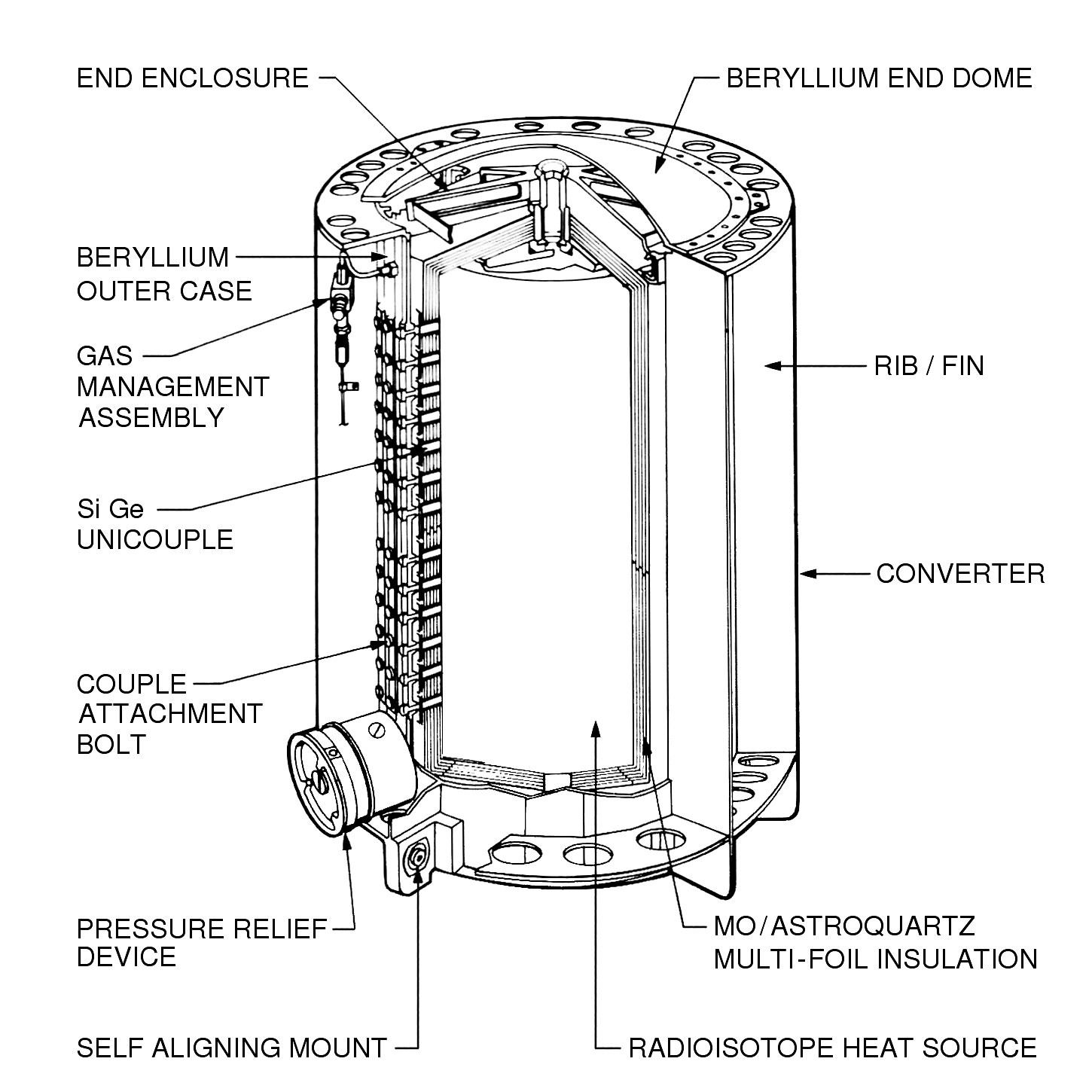

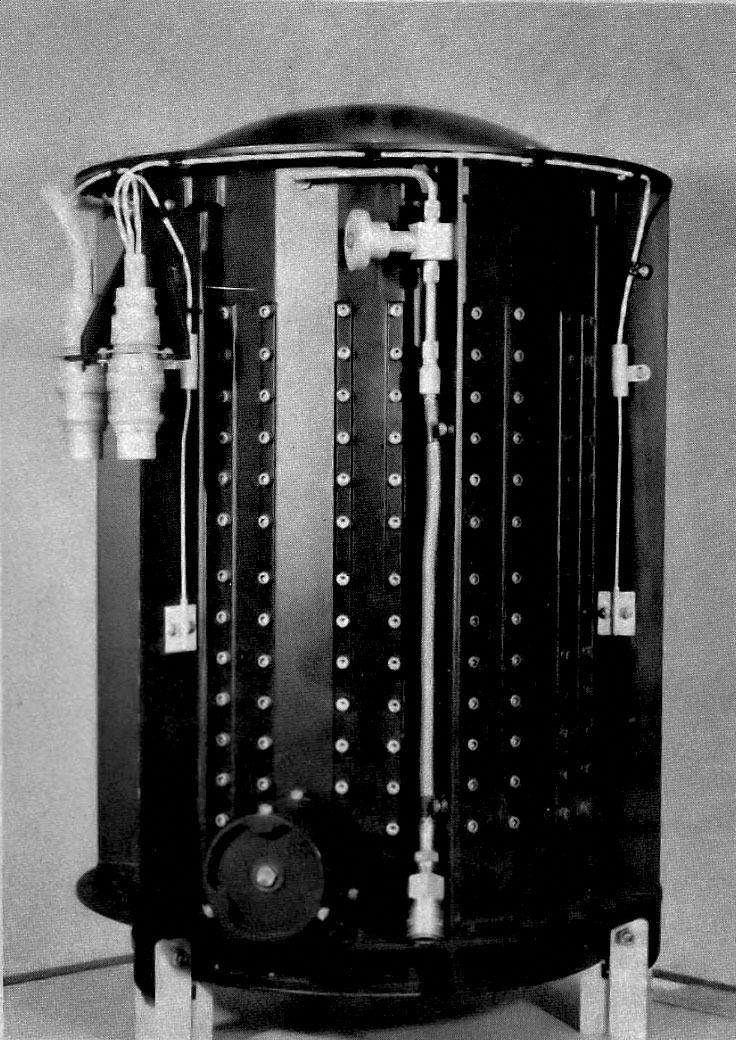

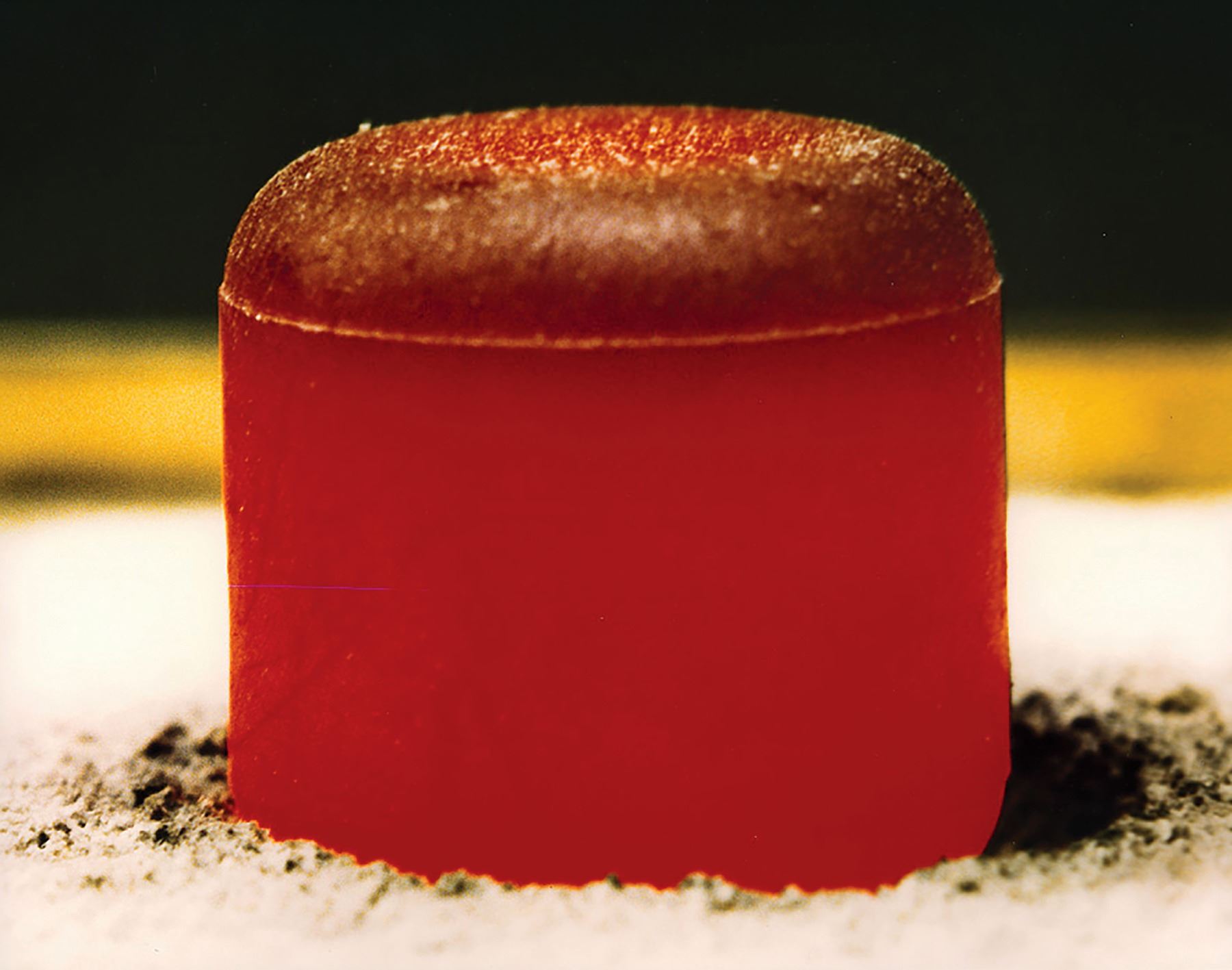

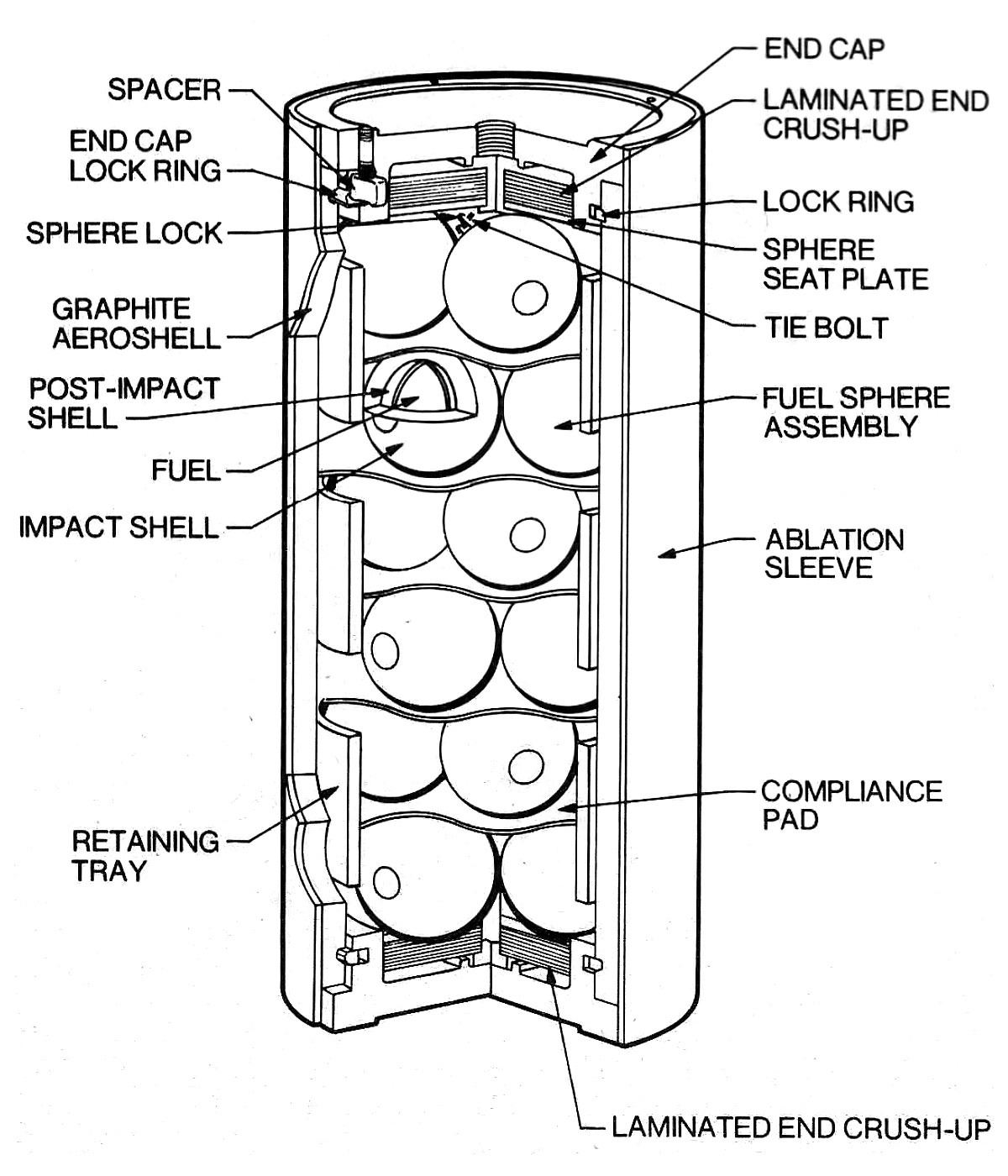

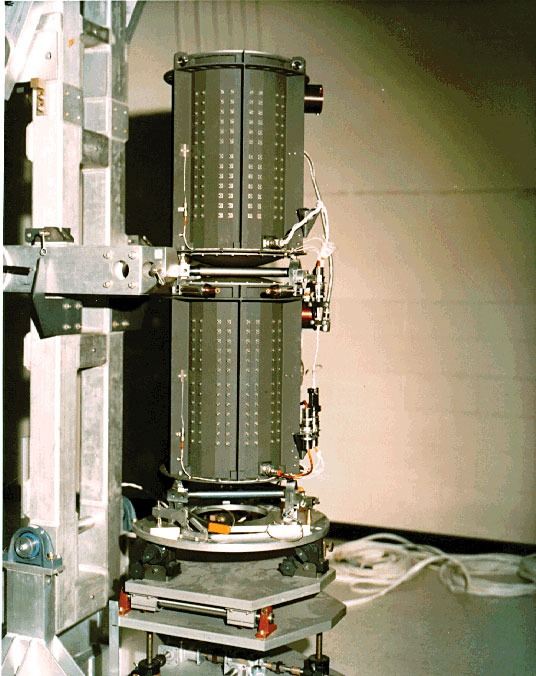

Space exploration missions require safe, reliable, long-lived power systems to provide electricity and heat to spacecraft and their scientific instruments. A uniquely capable source of power is the radioisotope thermoelectric generator (RTG)—essentially a nuclear battery that reliably converts heat into electricity. The Multihundred-Watt Radioisotope Thermoelectric Generator (MHW RTG) was developed for the Voyager spacecrafts, Voyager 1 and Voyager 2. These RTGs on Voyager 1 and Voyager 2 have been operating since 1977. Voyager 1 is operating over 13 billion miles from Earth and Voyager 2 recently came fully back on-line, over 11 billion miles from Earth, voyaging farther than any other man-made objects. This is too far from the sun for solar cells to power its electronics, and so JPL designed it to use an RTG to provide power for many decades. Each RTG had a total weight of 37.7 kg including about 4.5 kg of Pu-238; these 24 pressed plutonium-238 oxide spheres provide enough heat to generate approximately 157 watts of electrical power initially, halving every 87.7 years. Each RTG generated about 2400 Watts of thermal power. Conversion of the decay heat of the plutonium to electrical power used 312 silicon-germanium (SiGe) thermoelectric couples. The initial thermoelectric couple hot junction temperature was 1000°C with a cold junction temperature of 300°C. Each Voyager spacecraft has three RTGs, which collectively supplied each spacecraft with 470 watts at launch. Radioisotope power has been used on eight Earth orbiting missions, eight missions traveling to each of the outer planets, and lunar surface experiment packages for Apollo missions 12 through 17. Some of the outer Solar System missions are the Pioneer, Voyager, Ulysses, Galileo, Cassini, and New Horizons missions.
