Space Shuttle Attitude Director Indicator

Currency:USD Category:Collectibles / Autographs Start Price:NA Estimated At:25,000.00 - 35,000.00 USD
Space Shuttle Attitude Director Indicator

Bidding Over

The auction is over for this lot.
The auctioneer wasn't accepting online bids for this lot.

Contact the auctioneer for information on the auction results.

Search for other lots to bid on...
Auction Date:2019 Oct 17 @ 18:00 (UTC-05:00 : EST/CDT)
Location:15th Floor WeWork, Boston, Massachusetts, 02108, United States
ALS - Autograph Letter Signed
ANS - Autograph Note Signed
AQS - Autograph Quotation Signed
AMQS - Autograph Musical Quotation Signed
DS - Document Signed
FDC - First Day Cover
Inscribed - “Personalized”
ISP - Inscribed Signed Photograph
LS - Letter Signed
SP - Signed Photograph
TLS - Typed Letter Signed

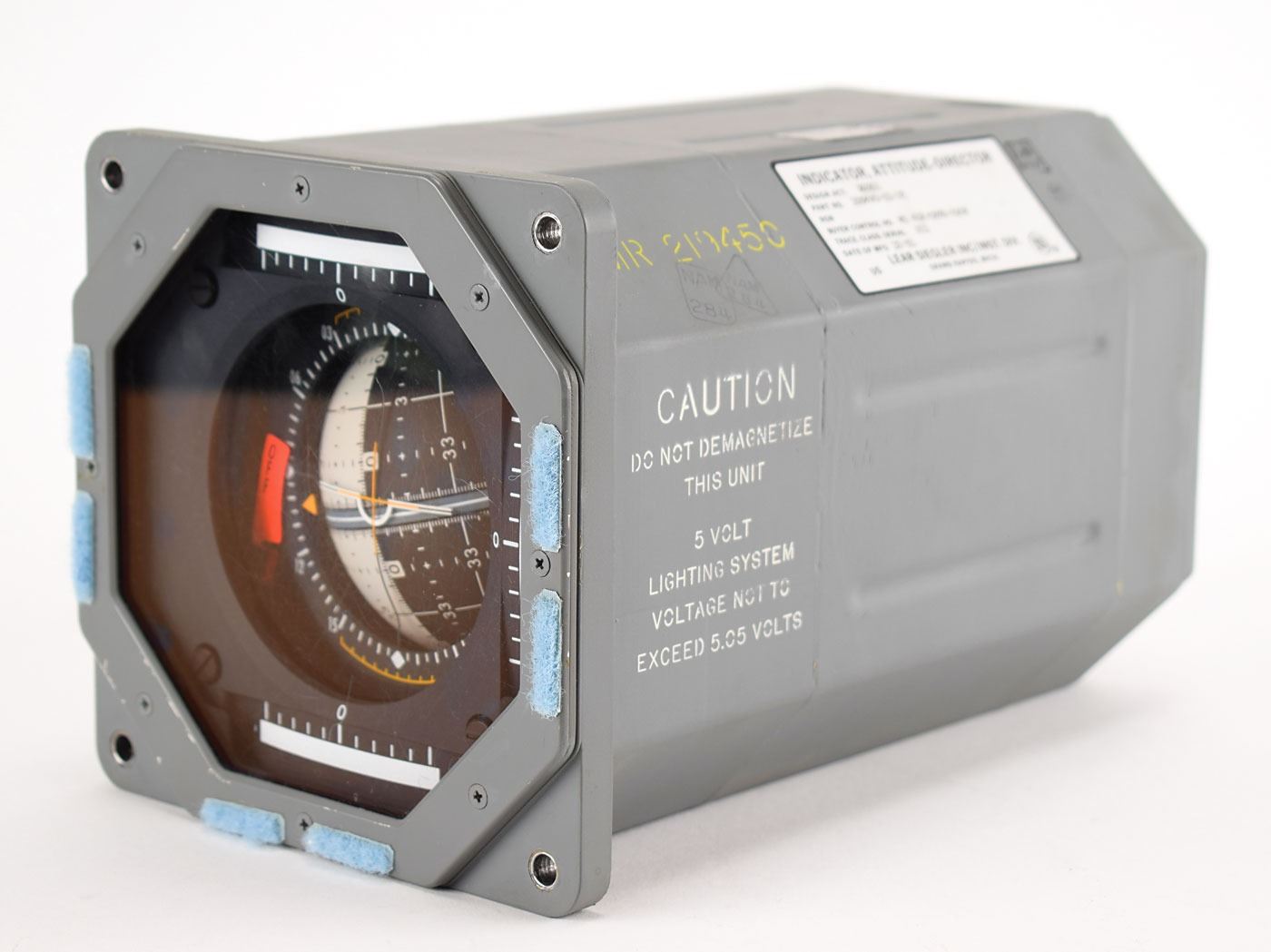

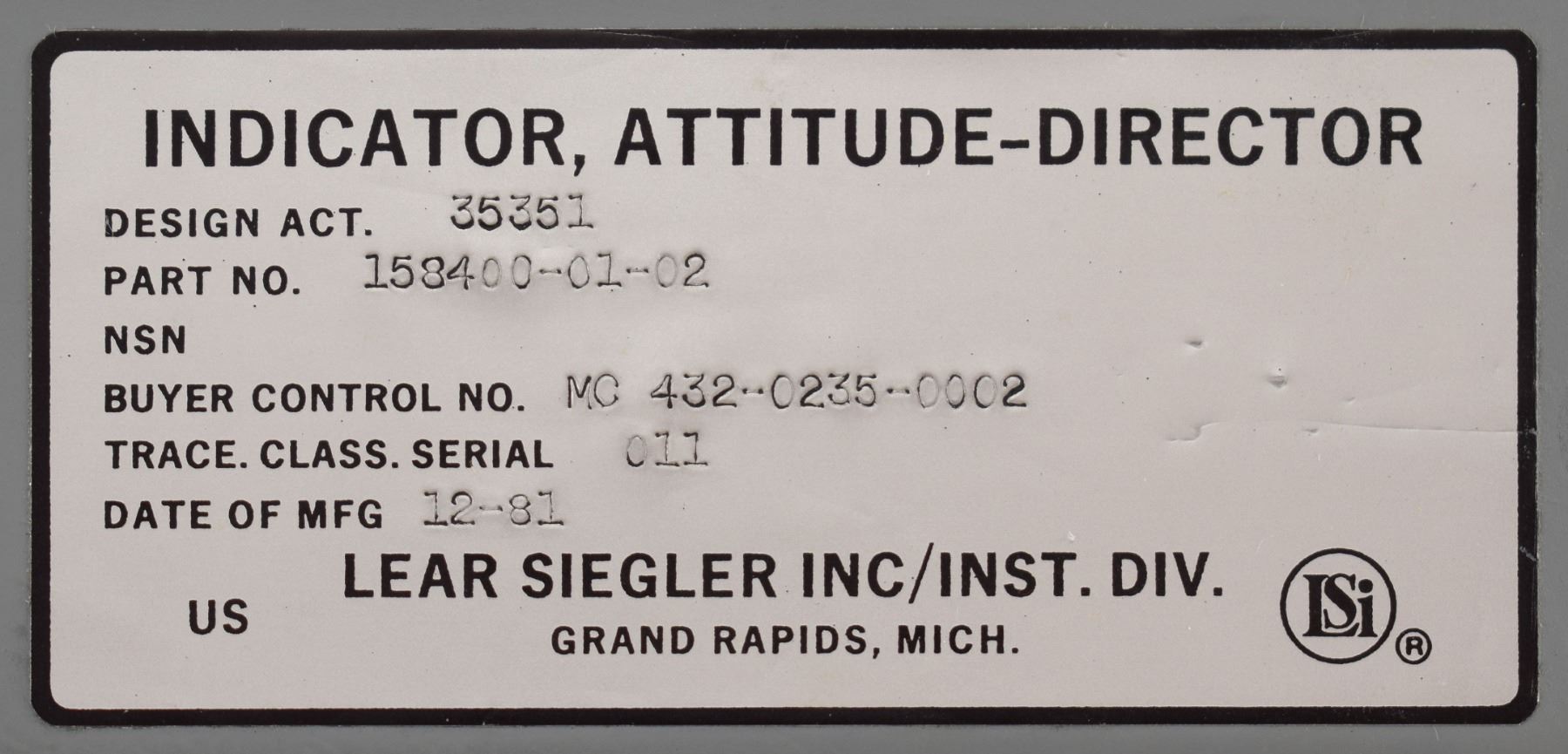

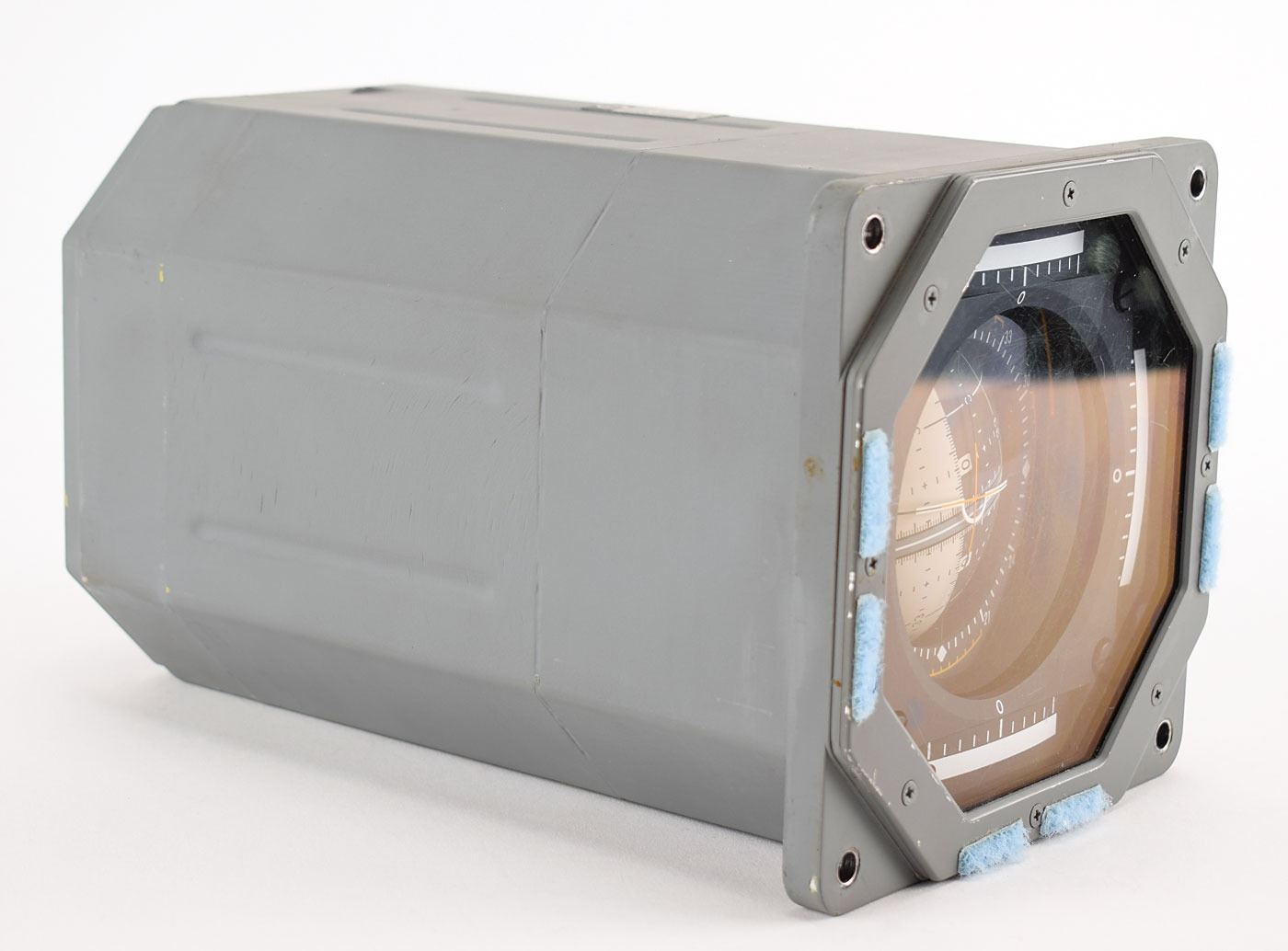

Space Shuttle Attitude Director Indicator (ADI) manufactured for NASA by Lear Siegler, in its original gray 6? x 6? x 9.25? housing. The Lear Siegler label affixed to the side reads: "Indicator, Attitude-Director, Design Act. 35351, Part No. 158400-01-02, Buyer Control No. MC 432-0235-0002, Trace. Class. Serial 011, Date of Mfg 12-81." Also bears a Lear Siegler repair label from 1982 on the top. In fine condition.

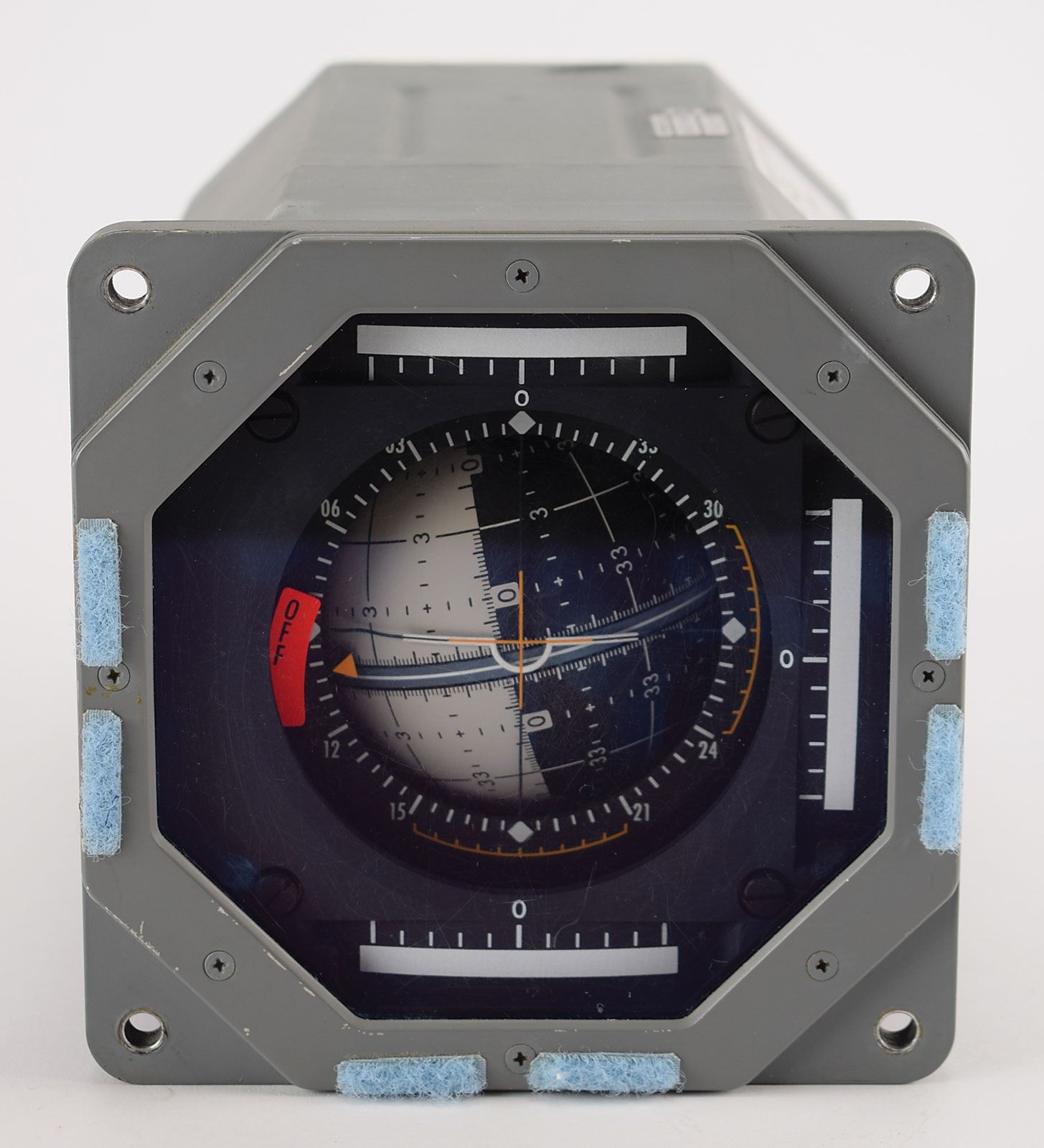

Featuring a design closely resembling the Flight Director Attitude Indicator (FDAI), this important instrument gave the Space Shuttle crew attitude information as well as attitude rate and attitude errors. The orbiter's attitude was displayed on the enclosed black-and-gray ball (commonly known as the 'eight ball') that was gimbaled and marked with numbers indicating angles. The ball moved in response to software-generated inputs to depict the orbiter's attitude in pitch, yaw and roll.

Provenance: The Spaceflight America Museum and Science Center in Prince Frederick, MD, and accompanied by the museum's display placard attributing the ADI to the Space Shuttle Discovery: "The ADI shown was removed from Space Shuttle Discovery (OV-103) in September 2002 during the Major Modification (OMM) period at the Kennedy Space Center, when the cockpit was upgraded to the Multifunction Electronic Display Subsystem (MEDS), or 'Glass Cockpit.' This ADI was used by the Space Shuttle Commander."
