S-IB Engine Gauges

Currency:USD Category:Collectibles / Autographs Start Price:NA Estimated At:2,000.00 - 4,000.00 USD
S-IB Engine Gauges

Bidding Over

The auction is over for this lot.
The auctioneer wasn't accepting online bids for this lot.

Contact the auctioneer for information on the auction results.

Search for other lots to bid on...
Auction Date:2014 Jun 18 @ 18:00 (UTC-05:00 : EST/CDT)
Location:236 Commercial St., Suite 100, Boston, Massachusetts, 02109, United States
ALS - Autograph Letter Signed
ANS - Autograph Note Signed
AQS - Autograph Quotation Signed
AMQS - Autograph Musical Quotation Signed
DS - Document Signed
FDC - First Day Cover
Inscribed - “Personalized”
ISP - Inscribed Signed Photograph
LS - Letter Signed
SP - Signed Photograph
TLS - Typed Letter Signed

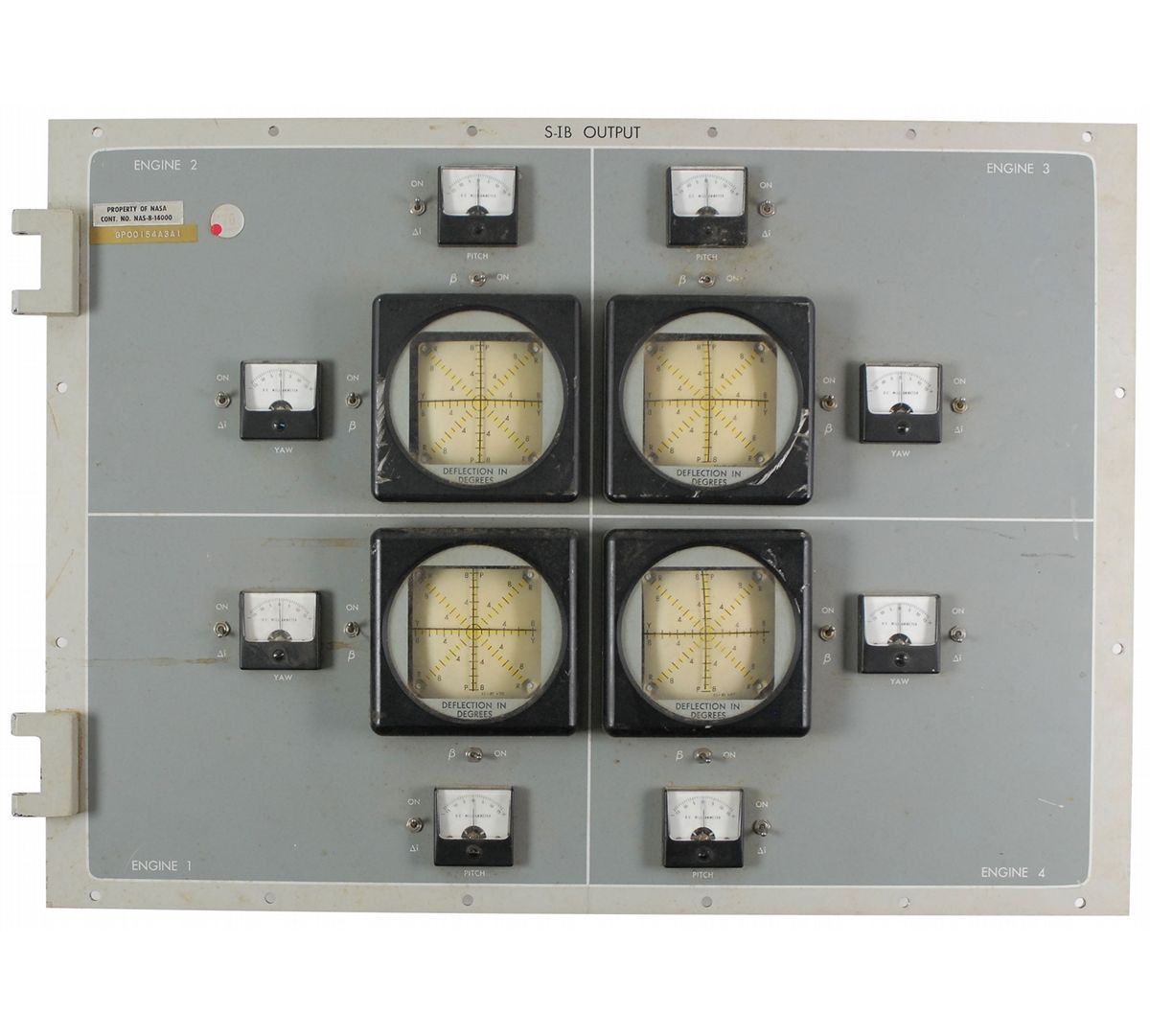

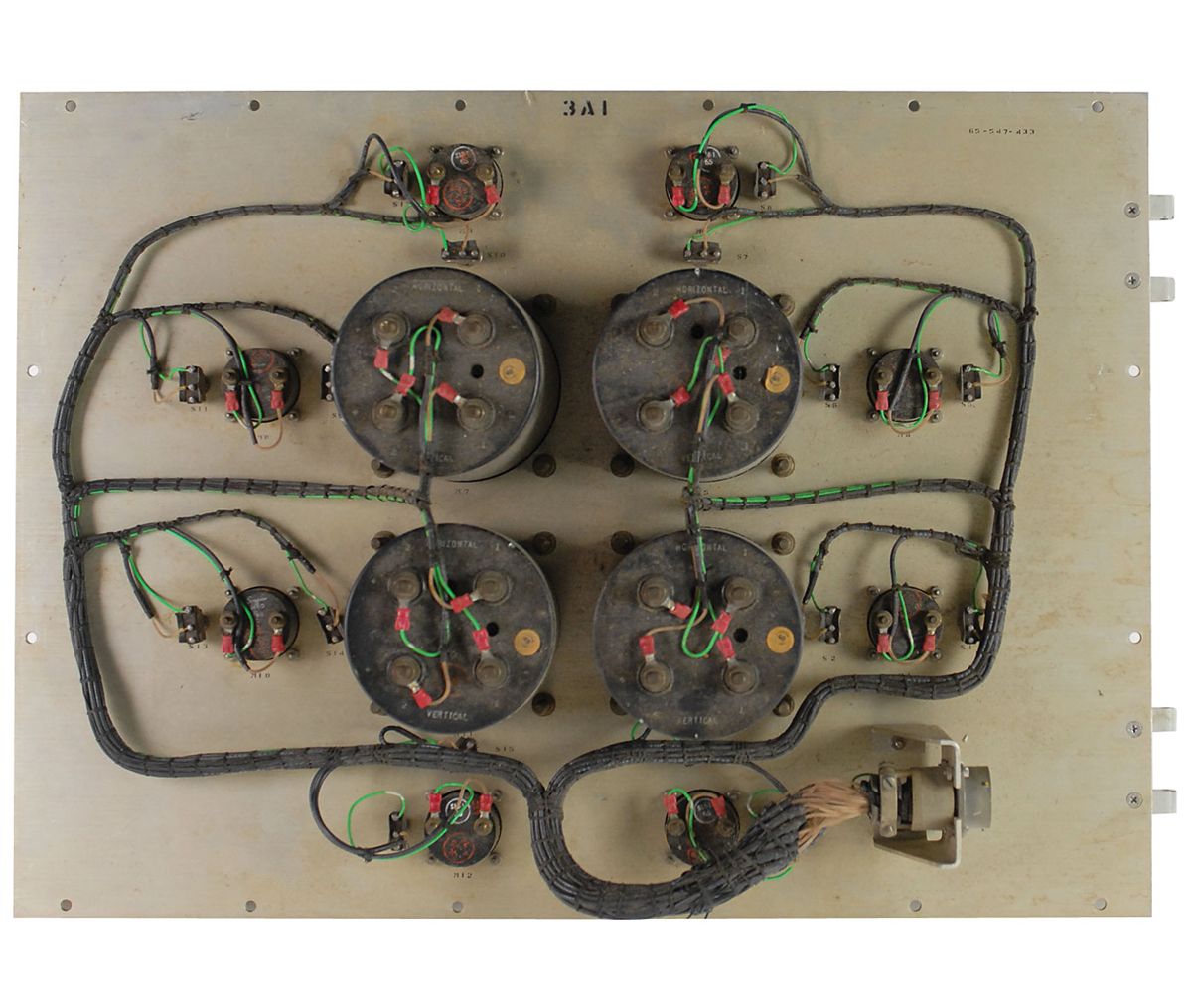

Very rare complete Apollo-era S-IB Output control panel used at either the Kennedy Space Center or Mission Control. Panel measures 24 x 17.5 x 5.5, with a “Property of NASA,” label affixed to top left, and a printed label underneath numbered “GP00154A3A1.” Board is divided into four equal sections for the four outboard H-1 engines on the Saturn IB first stage, each with an ‘X’ and ‘Y’ hydraulic actuator, as well as switches to control each engine’s pitch and yaw. This panel was used to indicate gimbaling (the change in angle of orientation) of all four engines on the Saturn first stage. Gimbaling was used to apply directional thrust to keep the rocket on its proper trajectory. The four cathode ray tubes (CRT) displayed the affiliated ‘X’ and ‘Y’ hydraulic actuator deflection for each of the engines to report their health and status to the ground controller. The Saturn IB launched two unmanned CSM suborbital flights, one unmanned LM orbital flight, and the first manned CSM orbital mission (first planned as Apollo 1, later flown as Apollo 7). It was used between 1973 and 1975 for three manned Skylab flights, and one Apollo-Soyuz Test Project flight.
