1183

Rare Experimental/Prototype J. Rider Marked Double Action Pocket Revolver with Trigger Guard Loading

Currency:USD Category:Antiques / Firearms & Armory Start Price:0.00 USD Estimated At:8,500.00 - 15,000.00 USD
Rare Experimental/Prototype J. Rider Marked Double Action Pocket Revolver with Trigger Guard Loading

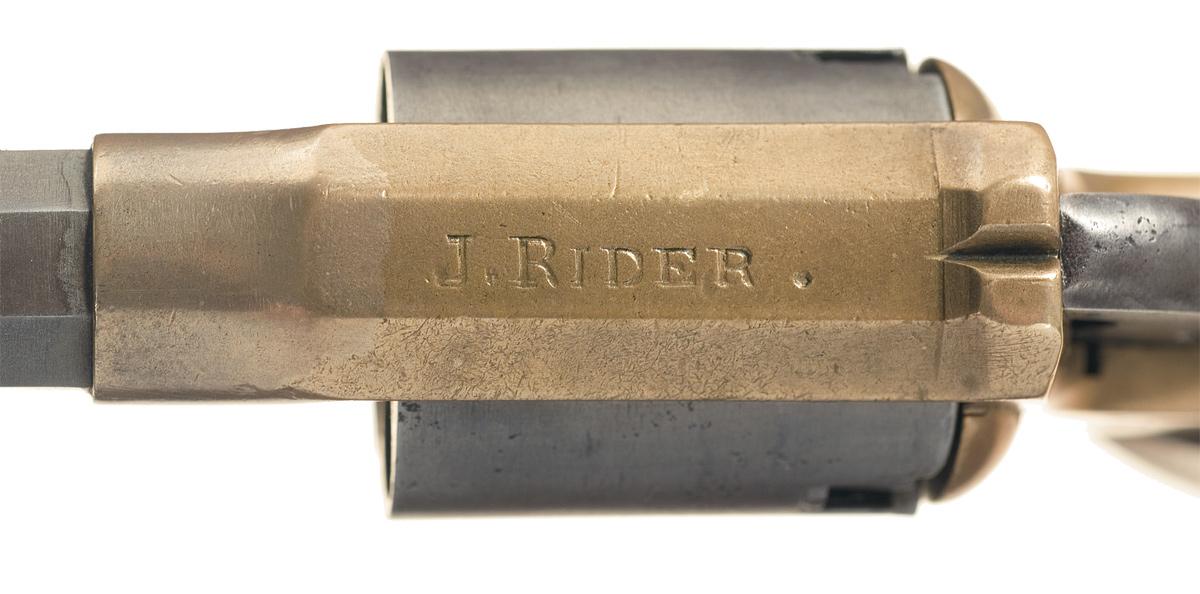

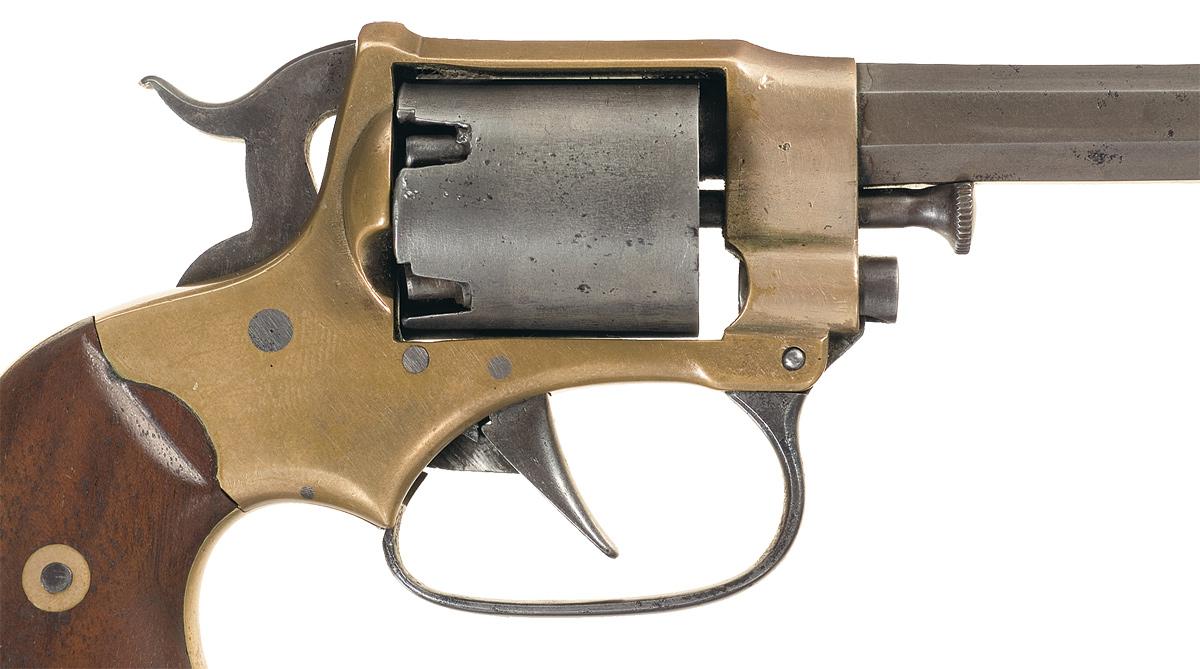

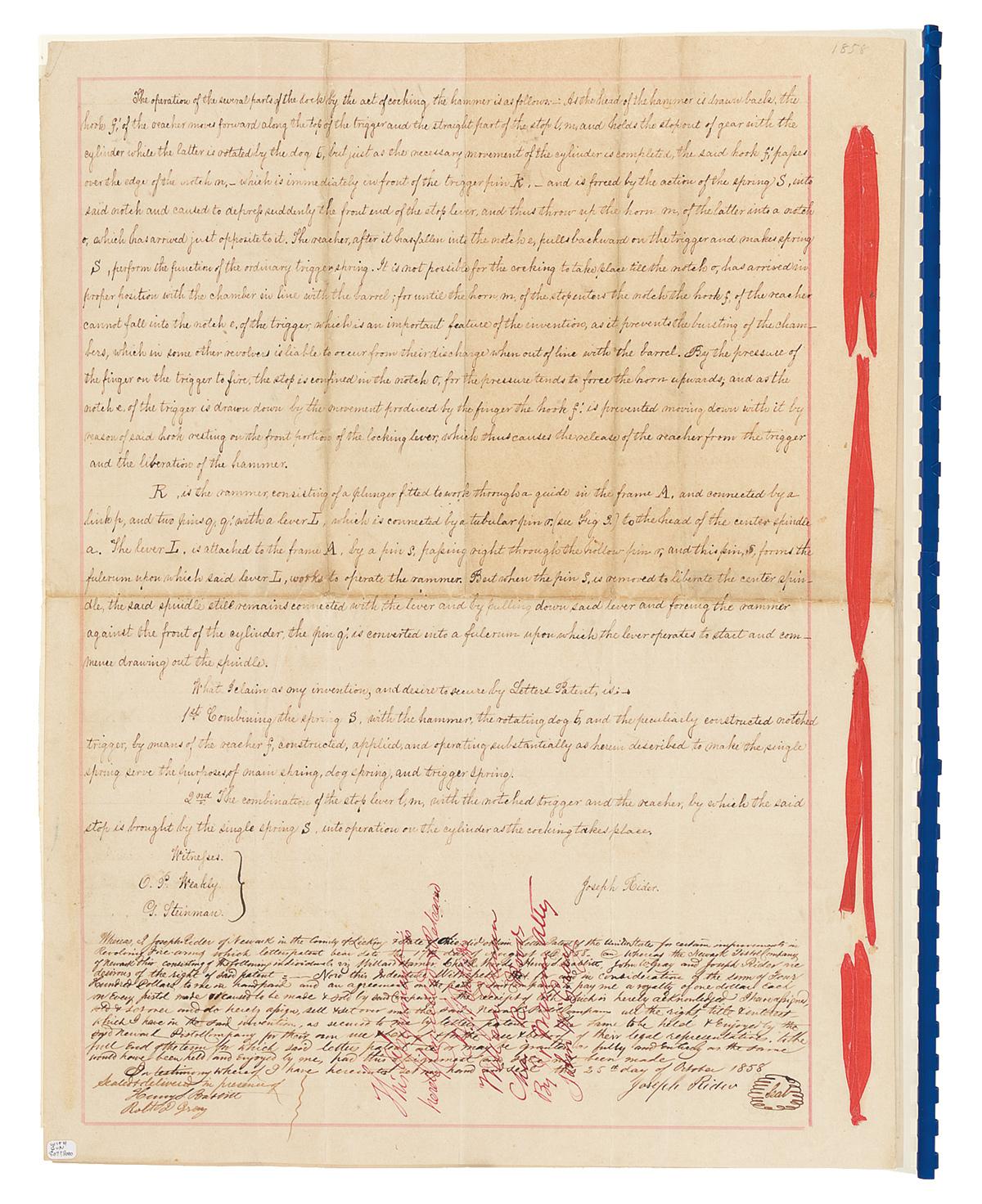

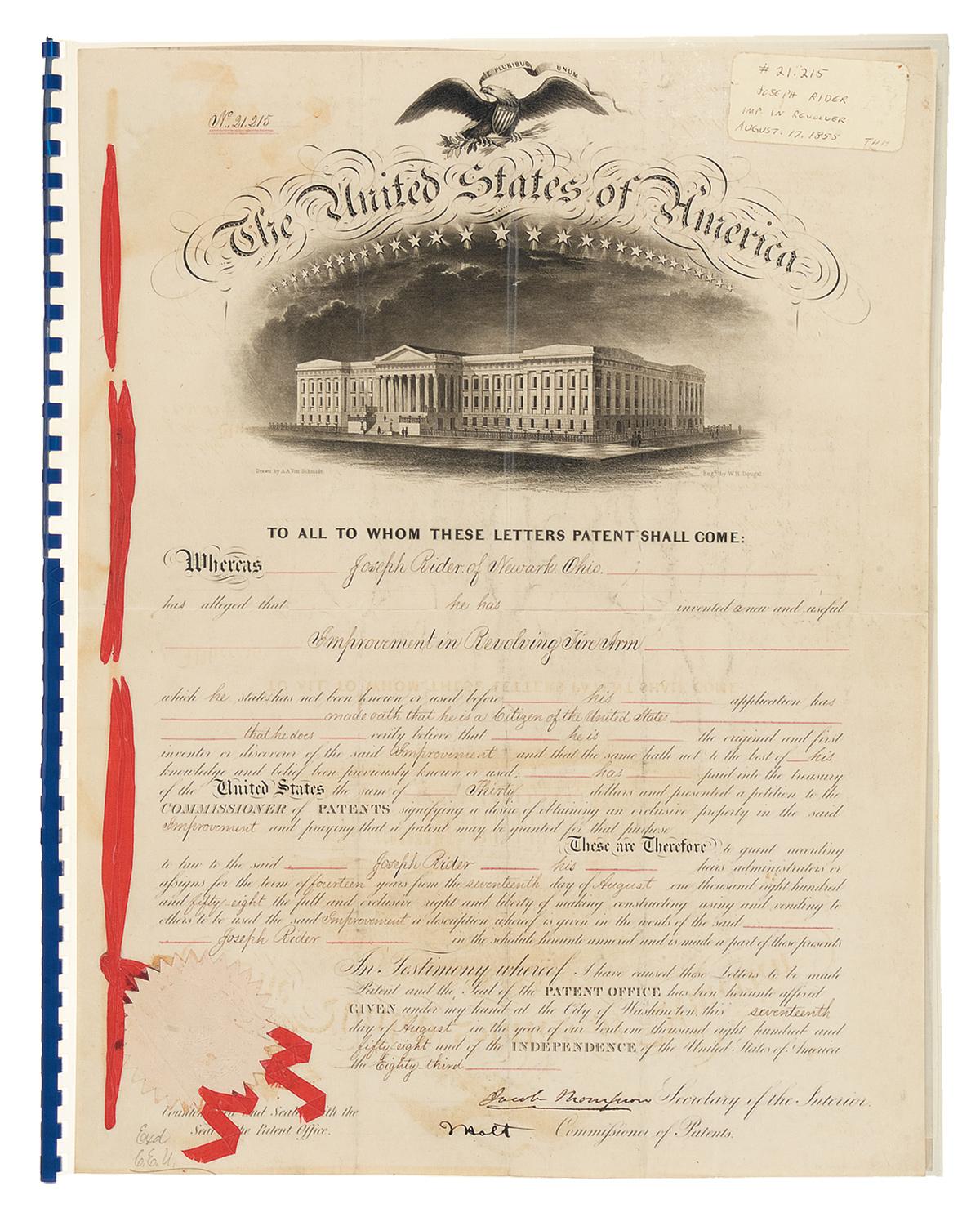

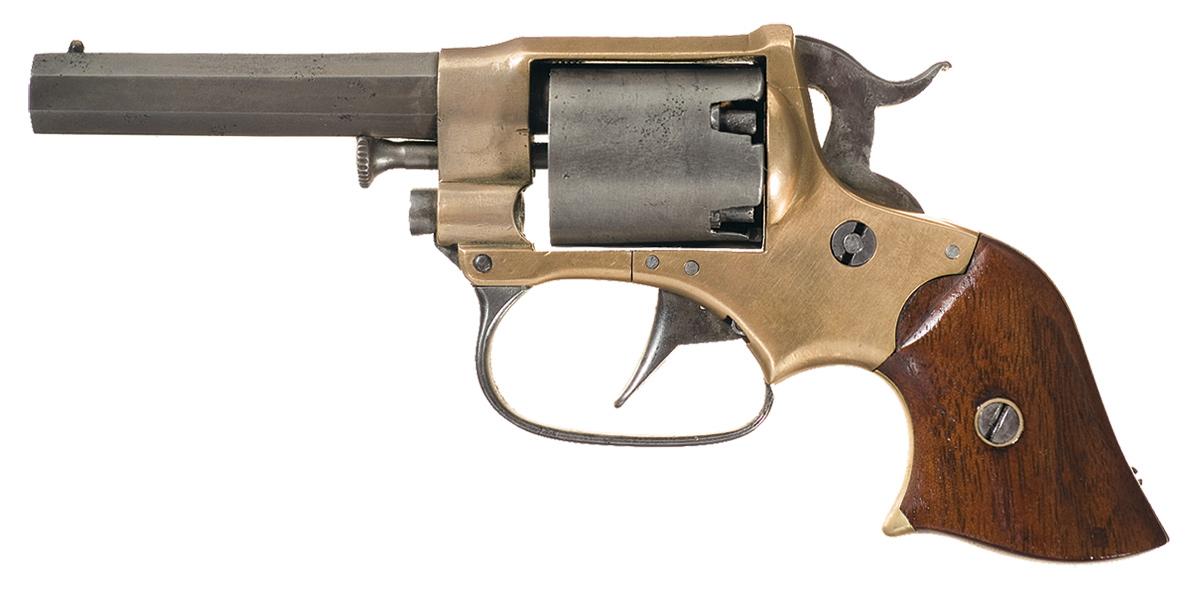

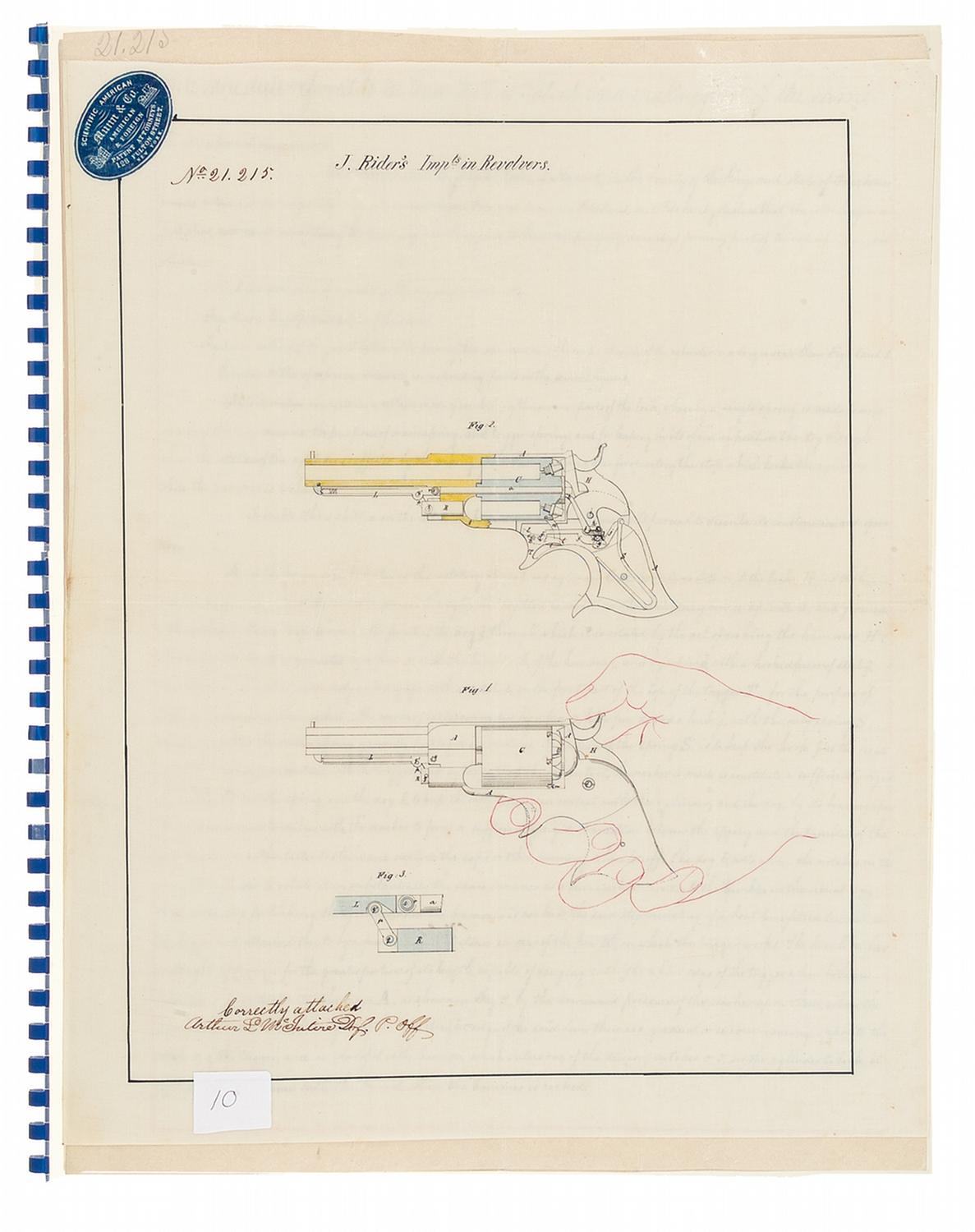

Produced circa 1858, this Rider Experimental revolver is equipped with a unique trigger guard loading lever. The plunger is housed in the lower frame and is attached to the upper front of the trigger guard, and the rear of the trigger guard latches into the frame directly behind the trigger, when pushed forward, the trigger guard unhooks and can swing down to work the plunger. The top strap is marked "J. RIDER." and there are no other visible markings. Brass cone front and frame notch rear sights, brass frame and metal parts appear to have been left in the "white". The revolver functions in both single and double action. Fitted with smooth two piece walnut grips. The revolver is accompanied by the original three page patent papers for the Rider Revolver, which have been laminated for preservation, and a copy of a notarized letter stating that the revolver was from the William M. Locke collection and is pictured in Antique Armory's, "THE WILLIAM M. LOCKE COLLECTION" on page 339.
BBL: 2 7/8 inch octagon
Stock:
Gauge: 31 percussion
Finish: white
Grips: walnut
Serial Number: NSN
Condition: Fine, with a smooth dull gray patina and a few small areas of minor pitting on the barrel and cylinder. The brass has been cleaned some time ago and has again taken on a pleasant mellow aged patina. Fine grips, with a few light scratches and handling marks. Mechanically fine.
