Excellent Civil War Burnside Breech Loading Carbine

Currency:USD Category:Antiques / Firearms & Armory Start Price:3,000.00 USD Estimated At:5,500.00 - 7,000.00 USD
Excellent Civil War Burnside Breech Loading Carbine
Catalog Special for iCollector Customers!

Order our two volume set with 6,000 color photos.
This is a great reference. You will also be mailed a copy of the prices realized after the auction.
Call or visit our website to order!
Enter the code: 15CAT
$15 - FREE SHIPPING (Regular Price $60.)
While Supplies Last

Estimate: $5500 - 7000

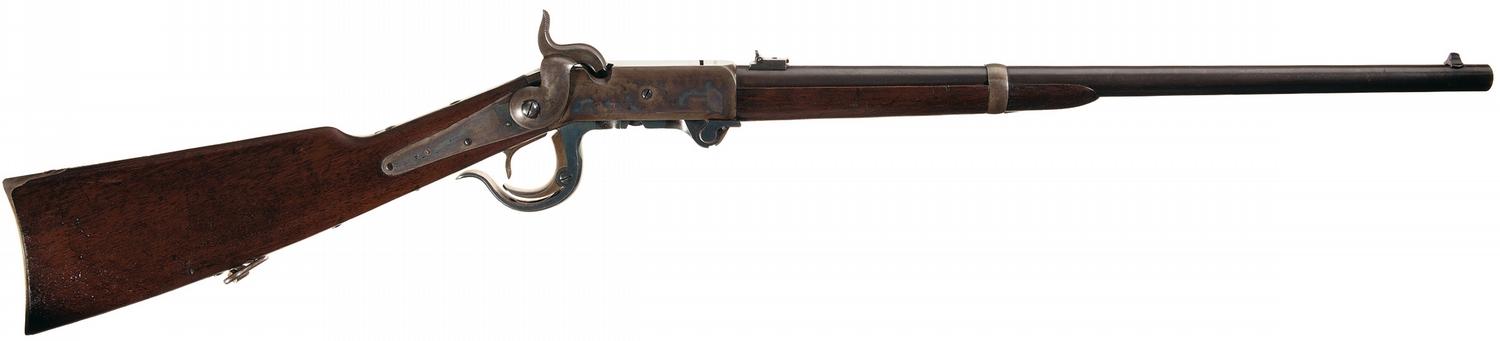

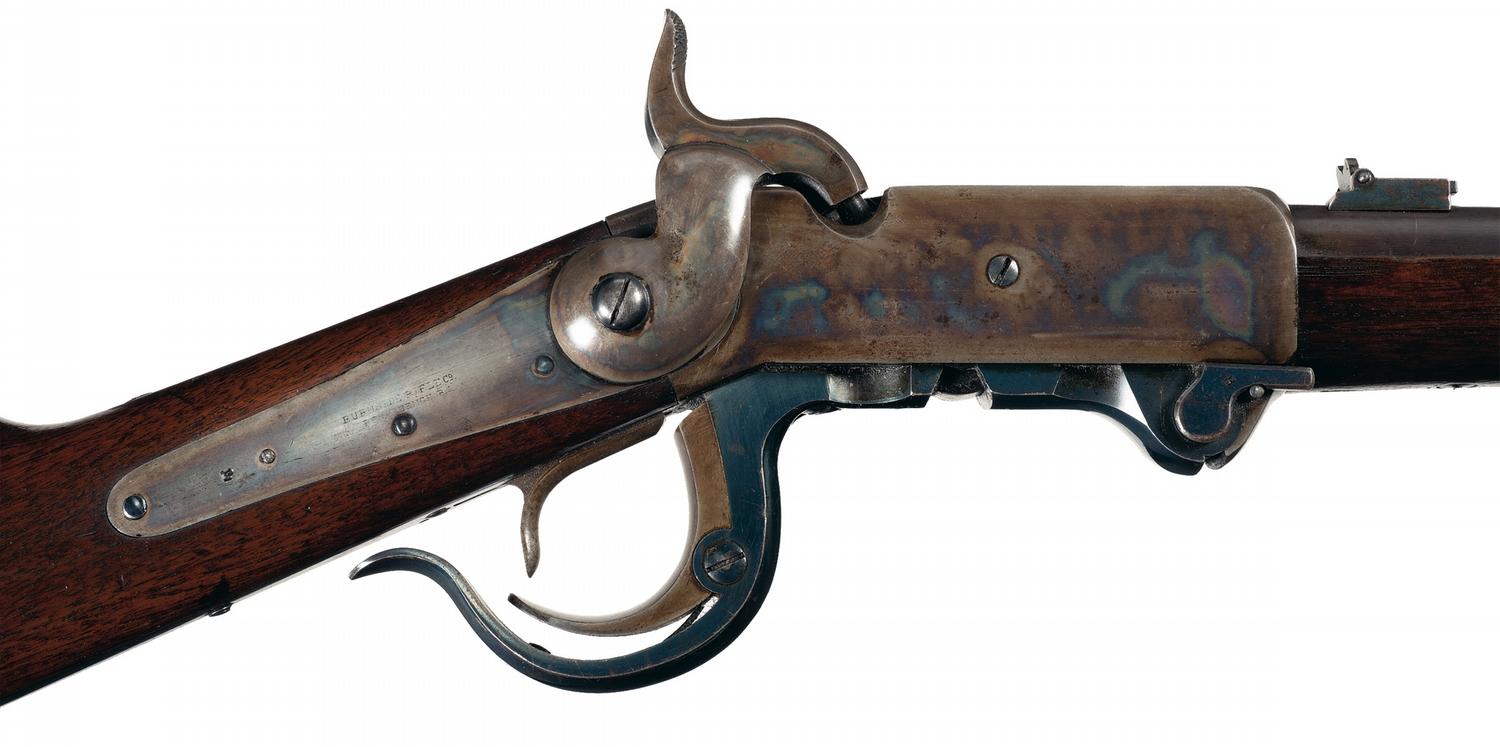

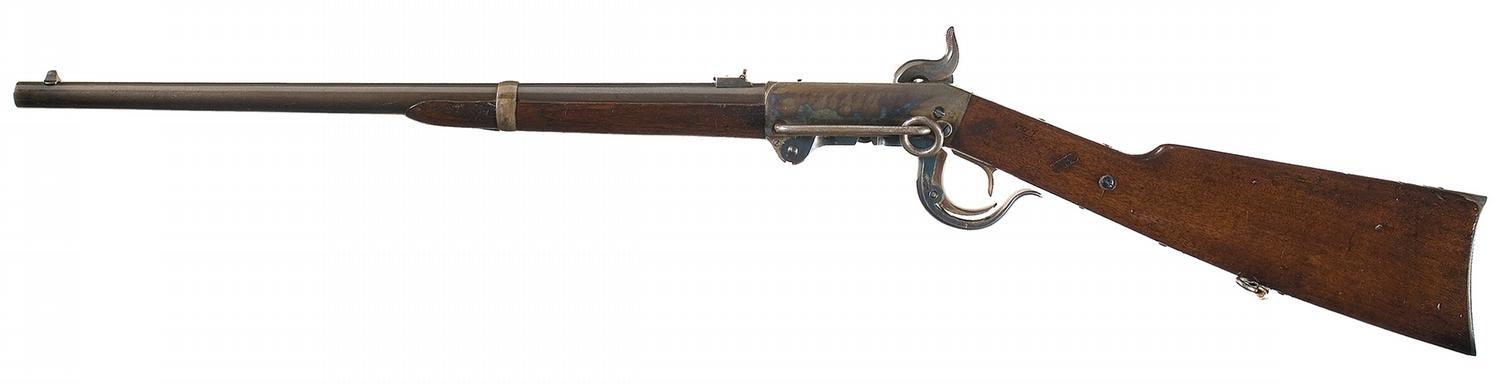

This is an excellent example of a late Civil War production Burnside Carbine that was manufactured by the Burnside Rifle Company circa 1863-65. The 4th Model Carbine is distinguished by a guide screw in the right side of the receiver. The 4th Model Carbine was made in the largest quantity of any Burnside Carbine; approximately 43,000 were manufactured between 1863 and 1865. The carbine has the distinctive breech latch inside the trigger guard, two-leaf rear sight and sling bar and ring on the left side of the frame. The barrel, breechblock, receiver tangs and trigger guard are blued and the barrel band, receiver, hammer and buttplate have a color casehardened finish. The black walnut stock and forearm have an oil finish. "CAST STEEL 1864" is stamped on the top of the barrel between the band and the rear sight. The top of the receiver is marked: "BURNSIDE PATENT/MODEL OF 1864". "BURNSIDE RIFLE CO.,/ PROVIDENCE+R.I." is stamped on the lock plate. The serial number "19415" is stamped on the top of the receiver and the breechblock. Single letter Ordnance inspection marks are stamped on most components and the script initials of the ordnance Sub-Inspector and Final Inspector are stamped on the left side of the stock wrist. The Burnside Carbine was a popular and widely issued Federal Cavalry carbine.
BBL: 21 inch round
Stock: walnut
Gauge: 54
Finish: blue/casehardened
Grips:
Serial Number: 19415

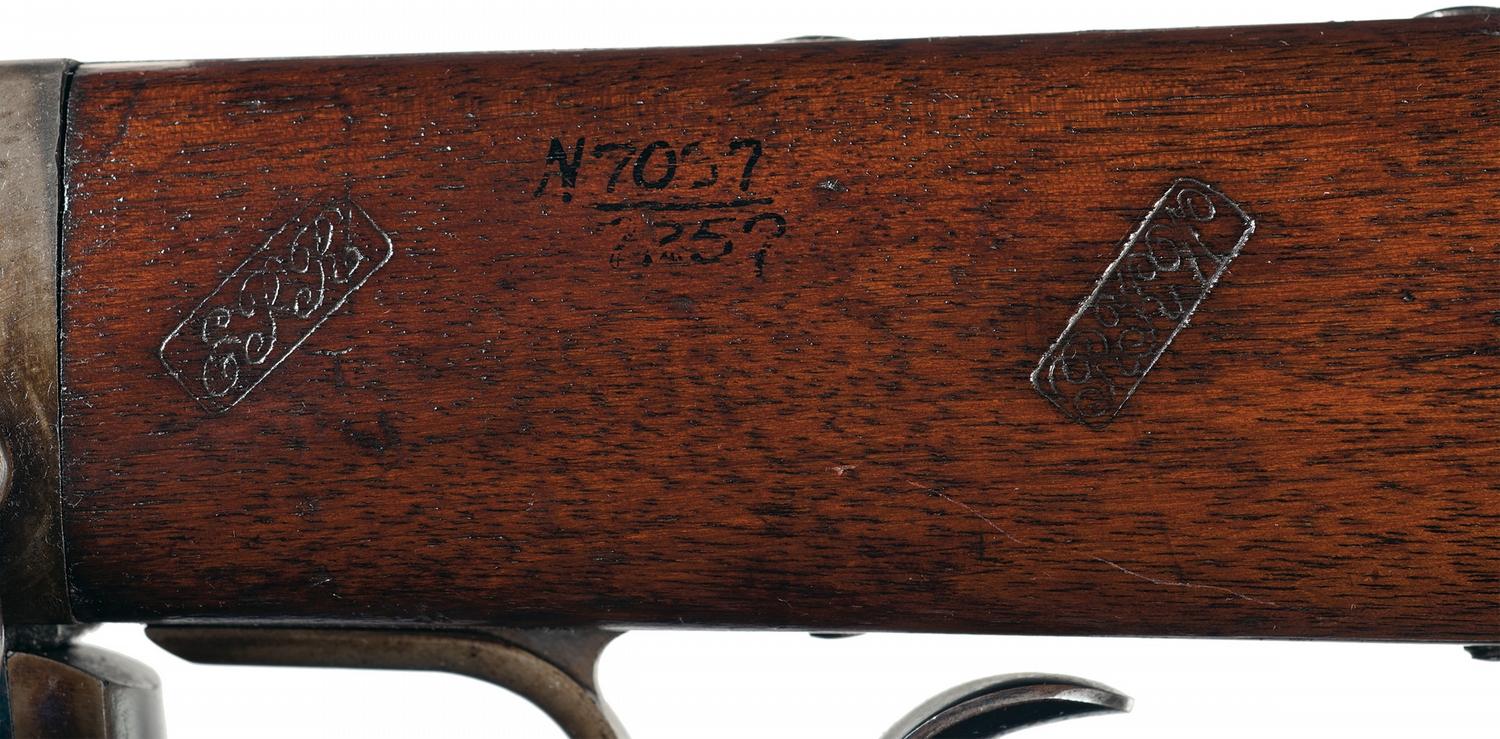

Condition: Excellent. The carbine retains 95% of the original casehardened finish on the barrel band, frame, hammer and buttplate and the case colors remain vivid. The breechblock and trigger guard have 97% of the bright original blue finish. There is no flash pitting on the percussion nipple and adjacent areas of the breechblock; the carbine appears to be unfired. The otherwise 90% blue finish on the barrel has faded to an attractive plum patina; there is some finish loss on the upper and lower tang. The bore is bright. The stock and forearm are in excellent condition with scattered and very minor storage marks. The Ordnance inspection marks on the left side of the stock wrist are very crisp. This is an excellent example of an important Civil War Federal Cavalry carbine.
