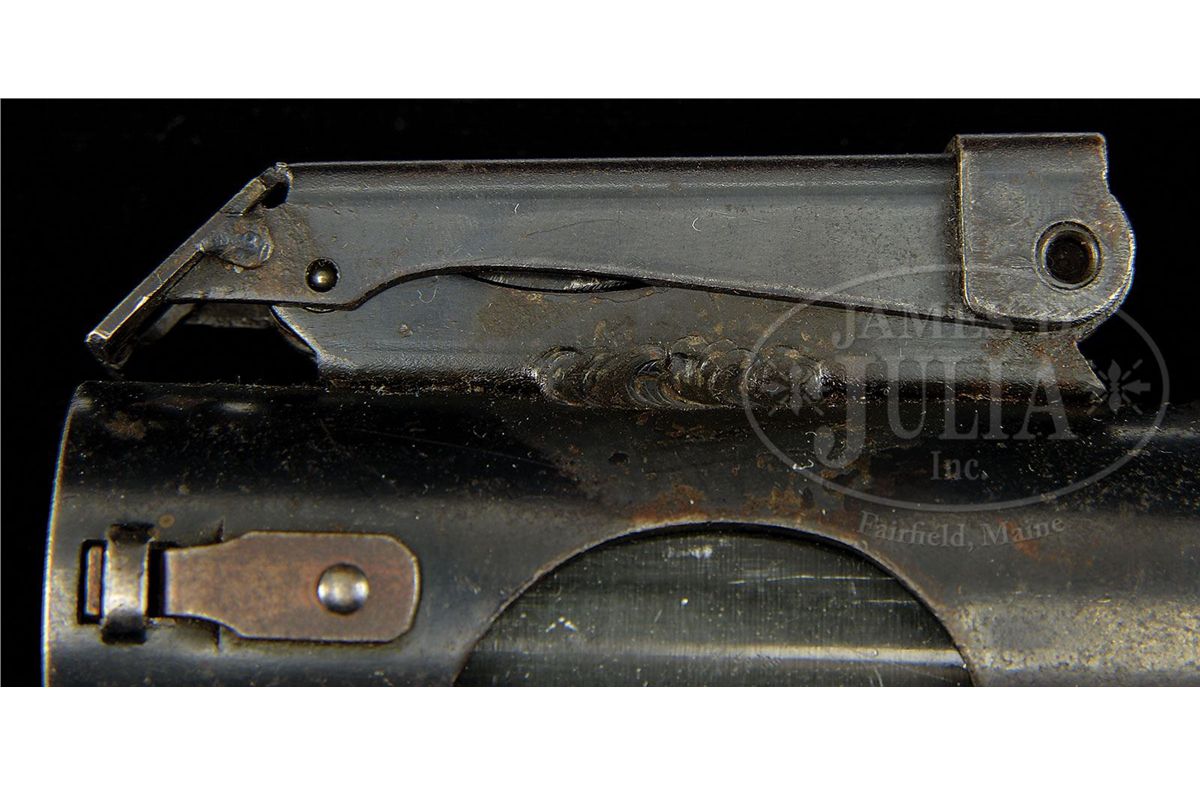

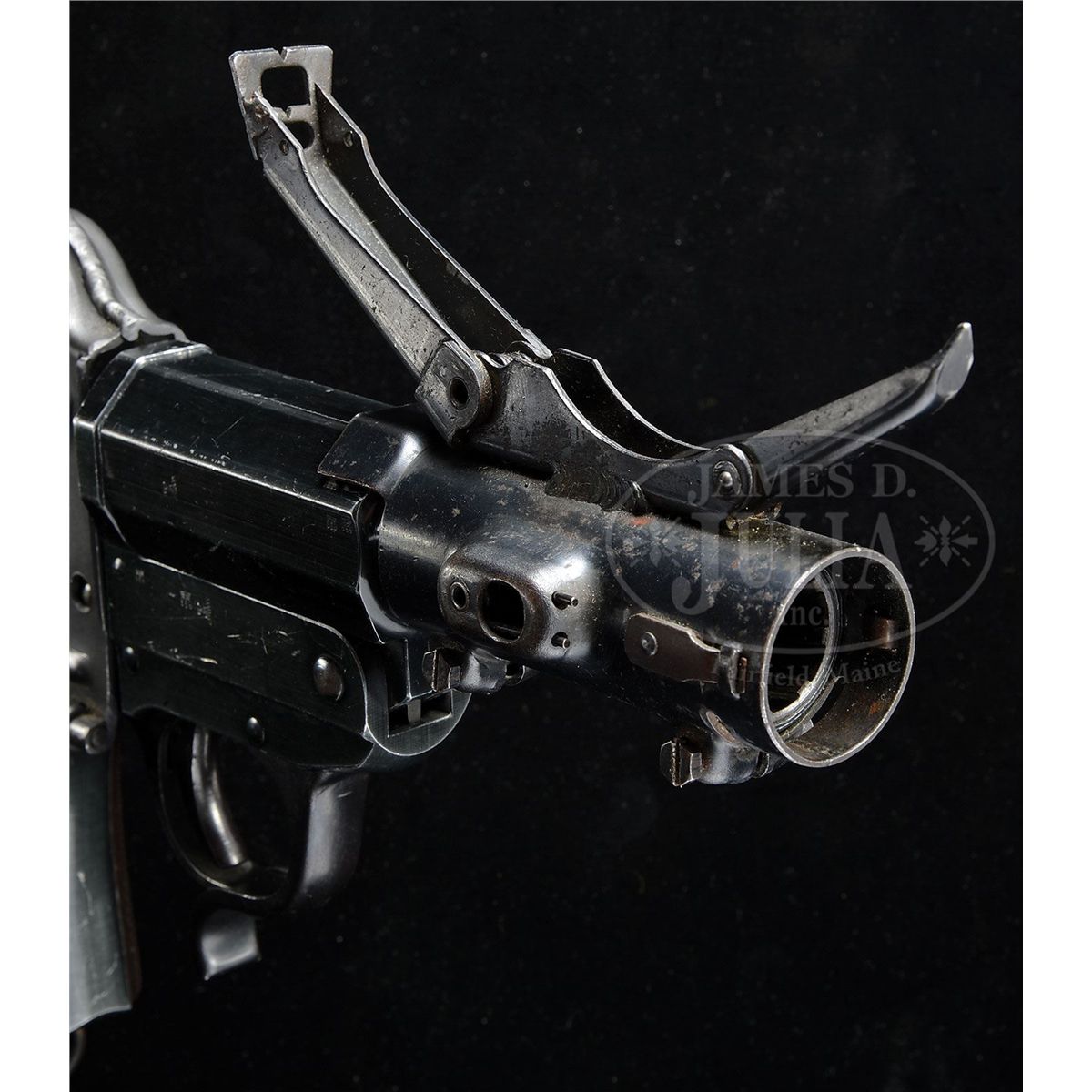

EXTREMELY RARE ANTI-TANK STURMPISTOLE WITH INSERT BARREL, FOLDING STOCK AND FOLDING SIGHT.

Currency:USD Category:Antiques / Firearms & Armory Start Price:5,000.00 USD Estimated At:10,000.00 - 20,000.00 USD
EXTREMELY RARE ANTI-TANK STURMPISTOLE WITH INSERT BARREL, FOLDING STOCK AND FOLDING SIGHT.

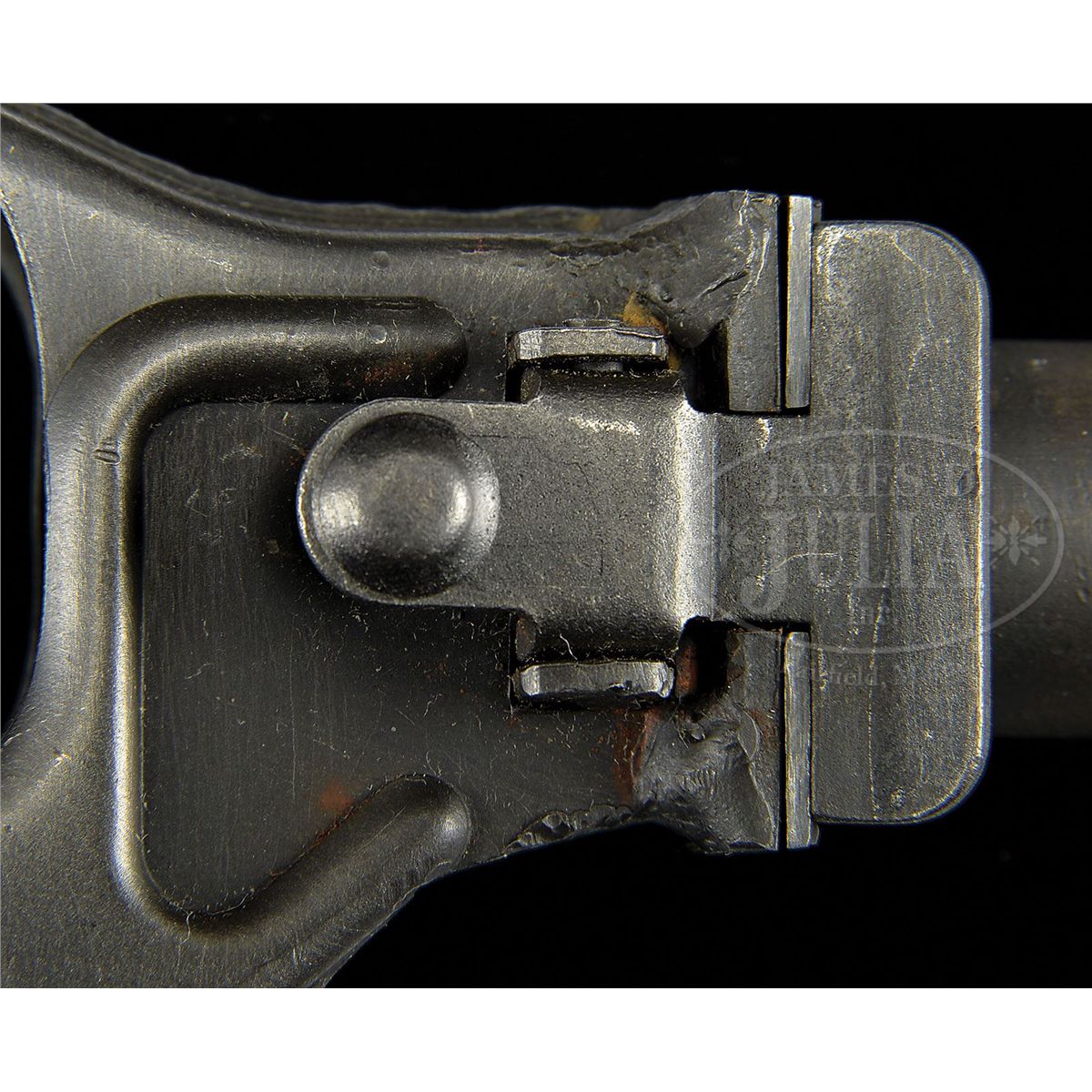

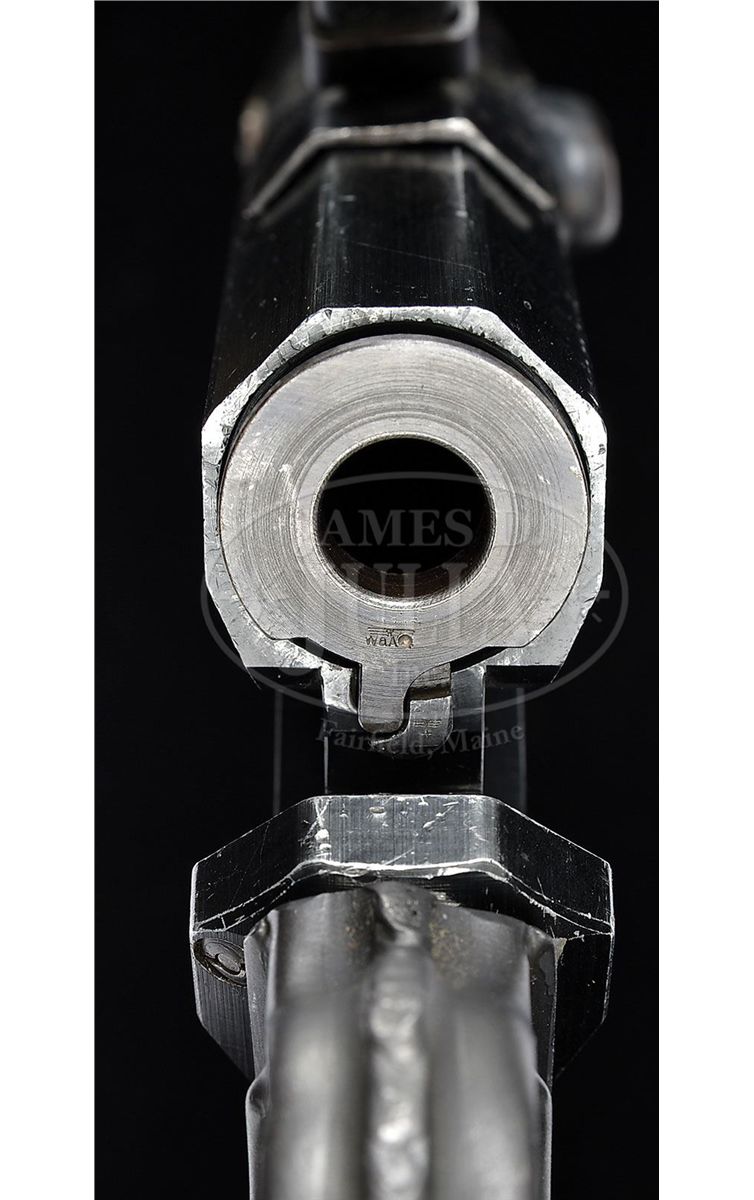

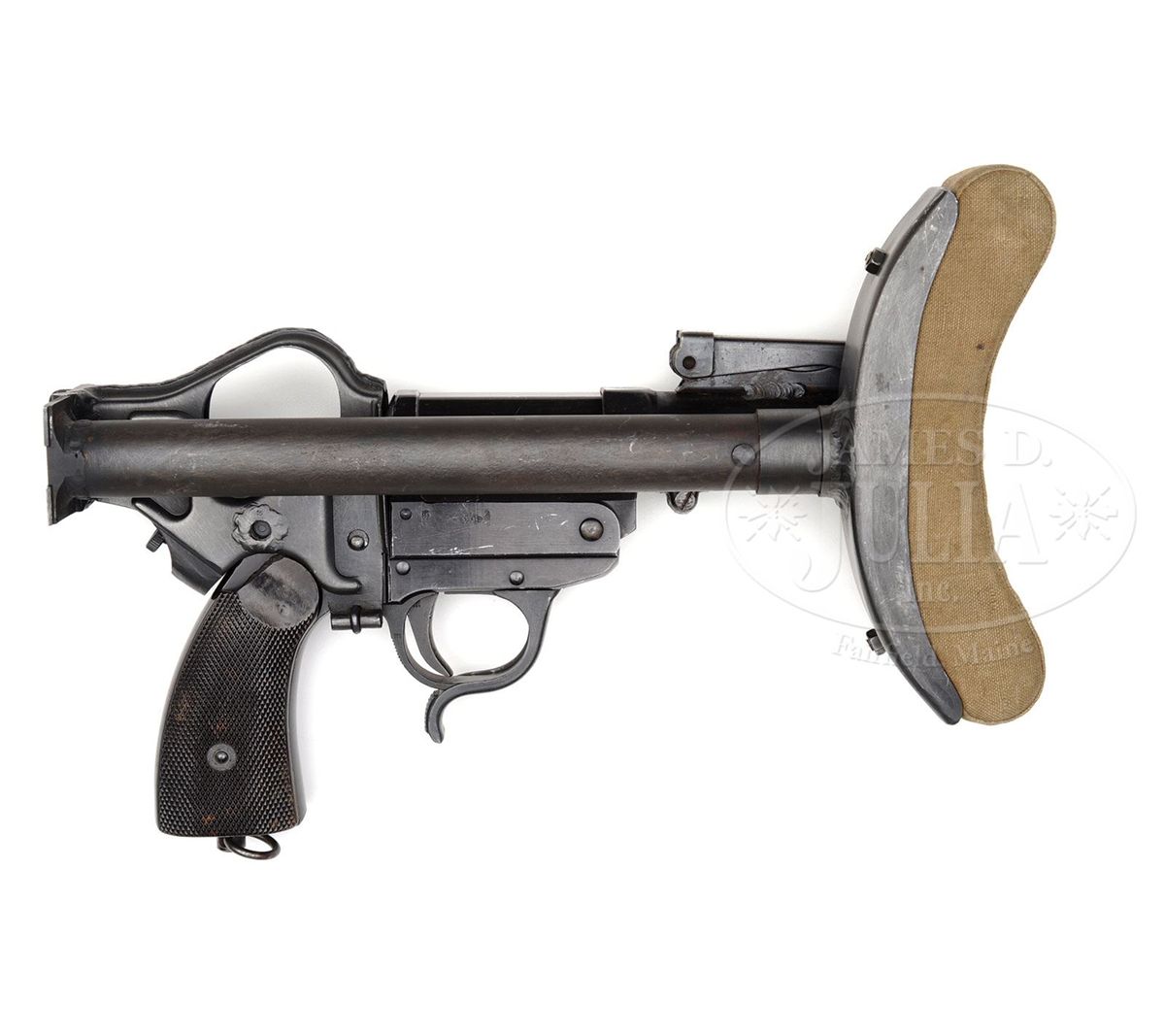

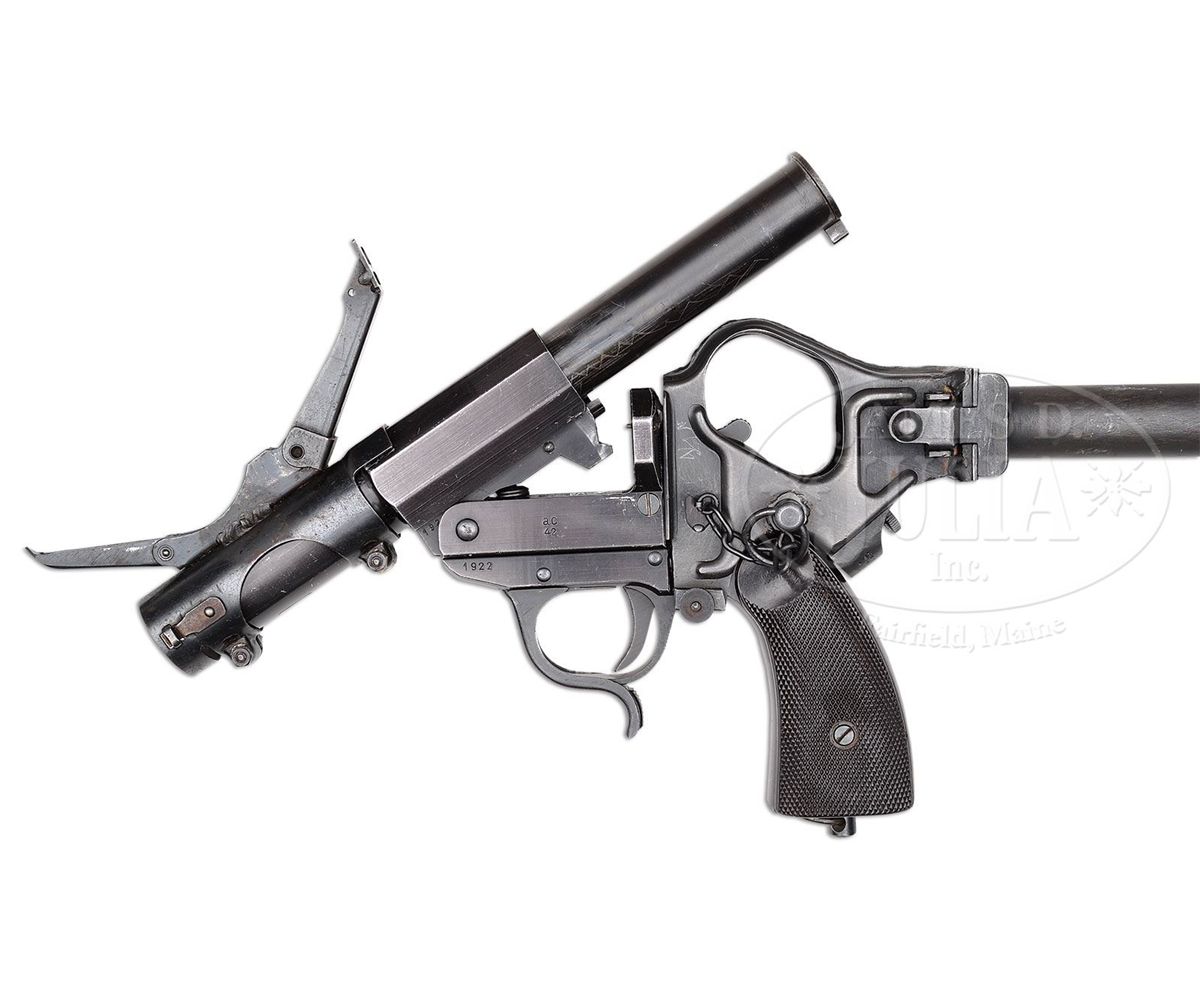

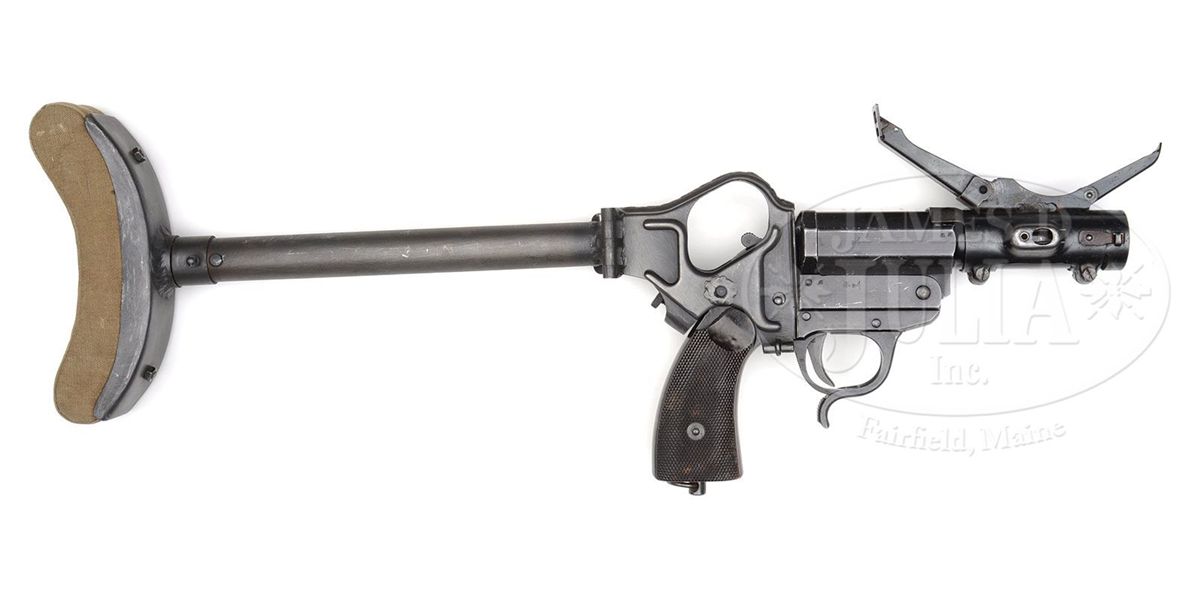

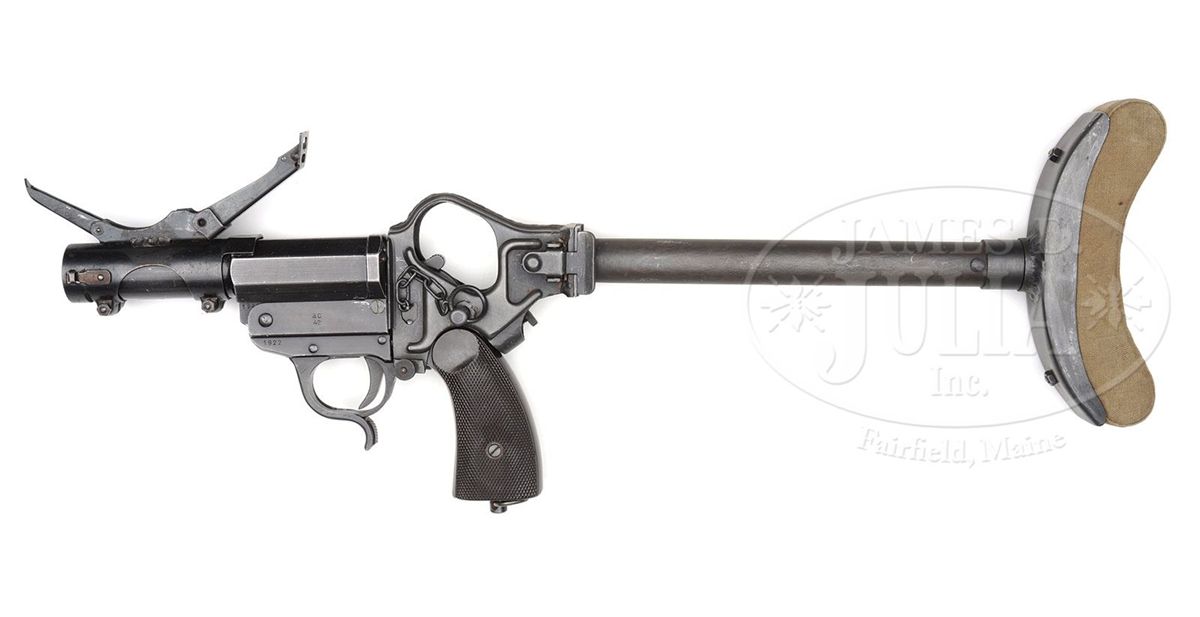

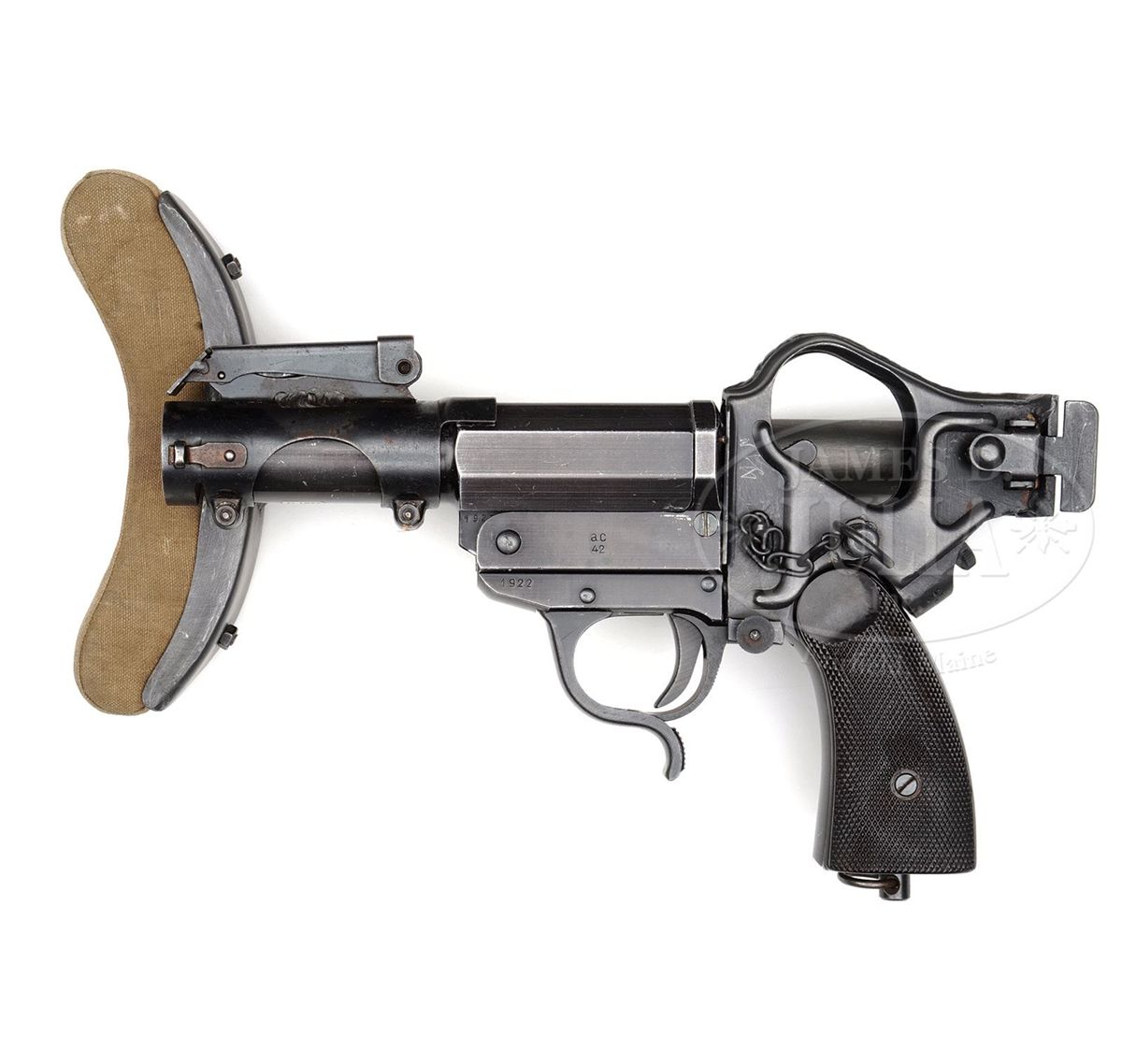

SN 1922. 27mm 6" bbl with 22mm rifled anti-tank grenade launcher insert for the shaped charge Panzerwurfkorper 42LP that is "WaA4" proofed, the pistol with special stepped extractor to accommodate both this insert barrel and regular signal ammunition. Oct chamber area has Eagle/359 proofs on upper right corner of right flat. Left side of frame is marked "ac / 42" indicating Walther manufacture in 1942. Frame is Eagle/359 proofed on right side. Serrated Eagle/359 proofed hammer. All numbered parts are matching. Checkered brown plastic grips. With an original unmarked second pattern Sturm pistol folding stock with green canvas padded butt that was required for the recoil of this gun/grenade combination. Stock is unmarked and has a hinge which allows the stock to swivel around to the right side of the gun to make it more compact for travel. It is believed these stocks were manufactured by Loch & Hartenberger in Oberstein. It clamps on the rear of the pistol and is secured with a threaded bolt that has an attaching chain that goes through the large hole in the back of the frame of the gun. A swivel latch secures under the frame behind the trigger guard, and a screw tightens onto the upper backstrap. Orig spring loaded folding sight slides over bbl and secures with two screws. It has a spring loaded closure that accepts a knob on the stock to secure it when in folded position. An original conversion of a Model 1934 Walther flare pistol into an anti-tank grenade launcher. Only about 200 of these sets were made for the German Army in WWII. PROVENANCE: Collection of Dr. Geoffrey Sturgess. CONDITION: Excellent. Gun retains about 95% black finish with wear areas from stock attachment. Bore is sharp. Grips are excellent with sharp checkering. Stock is excellent retaining 97% matte parkerised finish and the green canvas butt pad is excellent with minor wear and light stains. Anti-tank sight attachment retains about 95% blue. 4-52700 BWS133
