Apollo Lunar Surface Drill Titanium Lunar Core Stem, Carbide Auger Bore Tool, and Sample Container

Currency:USD Category:Collectibles / Autographs Start Price:NA Estimated At:400.00 - 600.00 USD
Apollo Lunar Surface Drill Titanium Lunar Core Stem, Carbide Auger Bore Tool, and Sample Container

Bidding Over

The auction is over for this lot.
The auctioneer wasn't accepting online bids for this lot.

Contact the auctioneer for information on the auction results.

Search for other lots to bid on...
Auction Date:2020 Apr 16 @ 18:00 (UTC-05:00 : EST/CDT)
Location:15th Floor WeWork, Boston, Massachusetts, 02108, United States
ALS - Autograph Letter Signed
ANS - Autograph Note Signed
AQS - Autograph Quotation Signed
AMQS - Autograph Musical Quotation Signed
DS - Document Signed
FDC - First Day Cover
Inscribed - “Personalized”
ISP - Inscribed Signed Photograph
LS - Letter Signed
SP - Signed Photograph
TLS - Typed Letter Signed

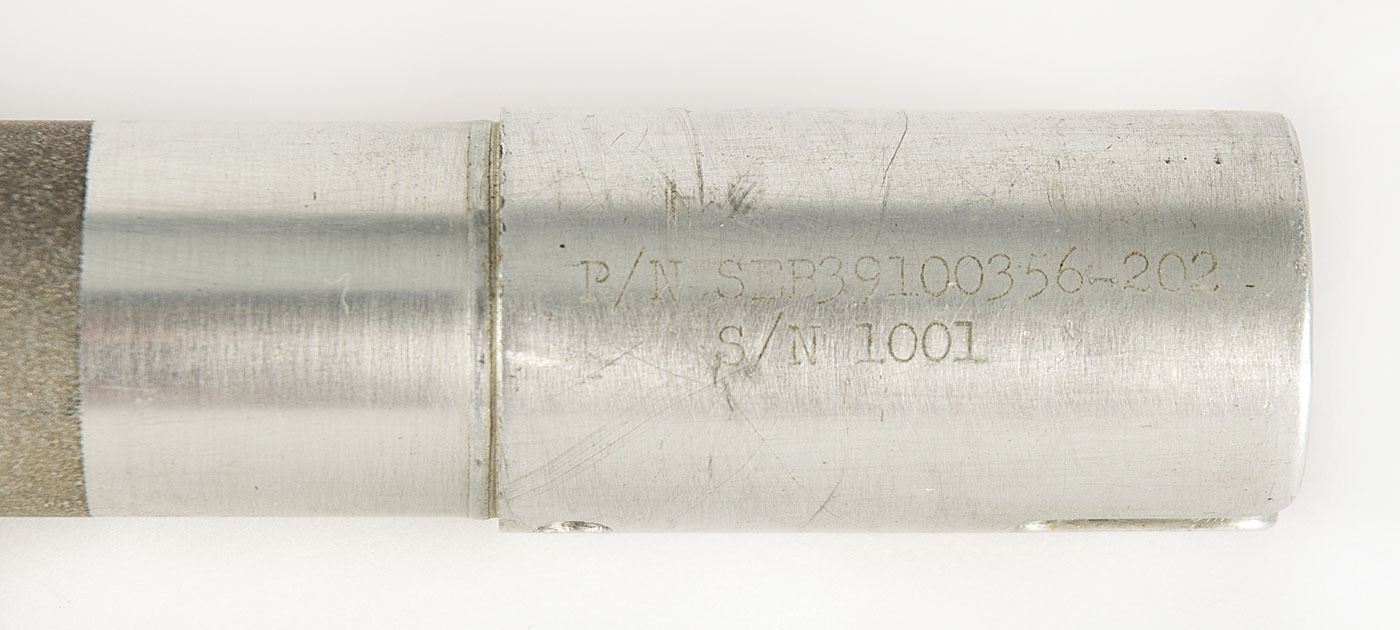

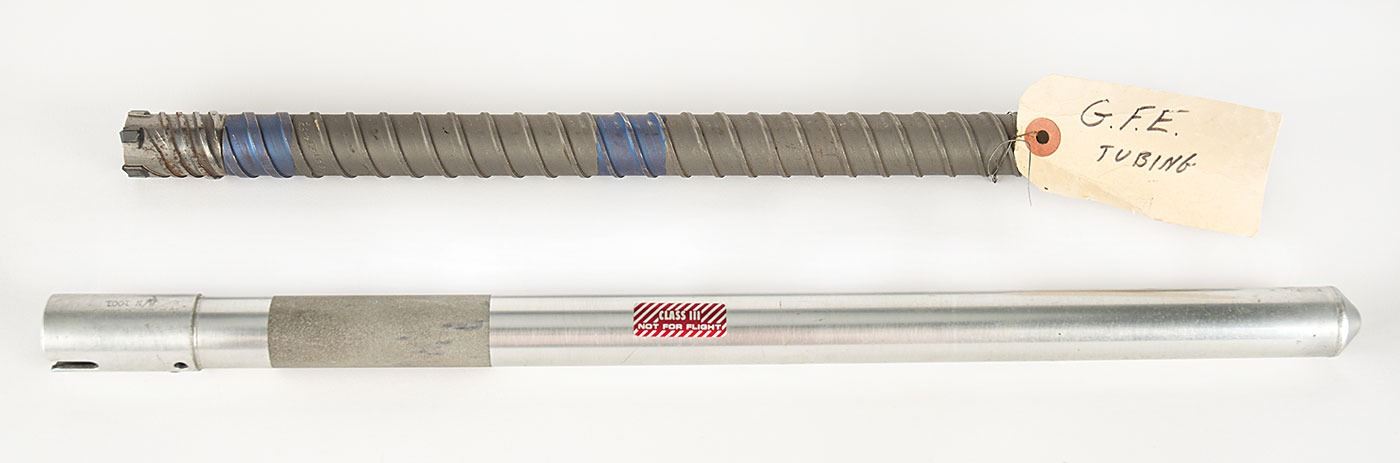

Titanium core stem tube designed for use with the Apollo Lunar Surface Drill (ALSD) to take long samples of lunar soil, plus one carbide core stem drill bit and a lunar core soil sample tube. The core stem tube with drill bit measures 16.75? long, with a diameter of approximately 1?. The core stem tube is hand-engraved with part numbers, "RS60010022-007," and the bit is engraved, "073." The ALSD core stem tubes are made of titanium alloy (A1-4V), and the bit is made of heat-treated 5150 steel with tungsten carbide cutting blades. The lunar core sample container measures 18? long and 1? in diameter, and is marked with part numbers, "P/N SEB39100356-202, S/N 1001," and bears an affixed "Class III / Not For Flight" label. In overall fine condition.

The Apollo Lunar Surface Drill was deployed on Apollo 15, 16, and 17, consisting of a battery-powered motor with specialized drill bits and modular core stems fitted together. The system was designed to extract columns of lunar regolith to return to Earth, and to create holes for the placement of two heat flow probes. These rigid but hollow core stem tubes allowed astronauts to drill up to ten feet into the lunar surface and extract soil samples; once removed, the tubes could be capped for their return to Earth for study.
