Apollo Command Module Block I Rotational Hand Controller

Currency:USD Category:Collectibles / Autographs Start Price:NA Estimated At:30,000.00 - 50,000.00 USD
Apollo Command Module Block I Rotational Hand Controller

Bidding Over

The auction is over for this lot.
The auctioneer wasn't accepting online bids for this lot.

Contact the auctioneer for information on the auction results.

Search for other lots to bid on...
Auction Date:2021 Apr 22 @ 18:00 (UTC-05:00 : EST/CDT)
Location:15th Floor WeWork, Boston, Massachusetts, 02108, United States
ALS - Autograph Letter Signed
ANS - Autograph Note Signed
AQS - Autograph Quotation Signed
AMQS - Autograph Musical Quotation Signed
DS - Document Signed
FDC - First Day Cover
Inscribed - “Personalized”
ISP - Inscribed Signed Photograph
LS - Letter Signed
SP - Signed Photograph
TLS - Typed Letter Signed

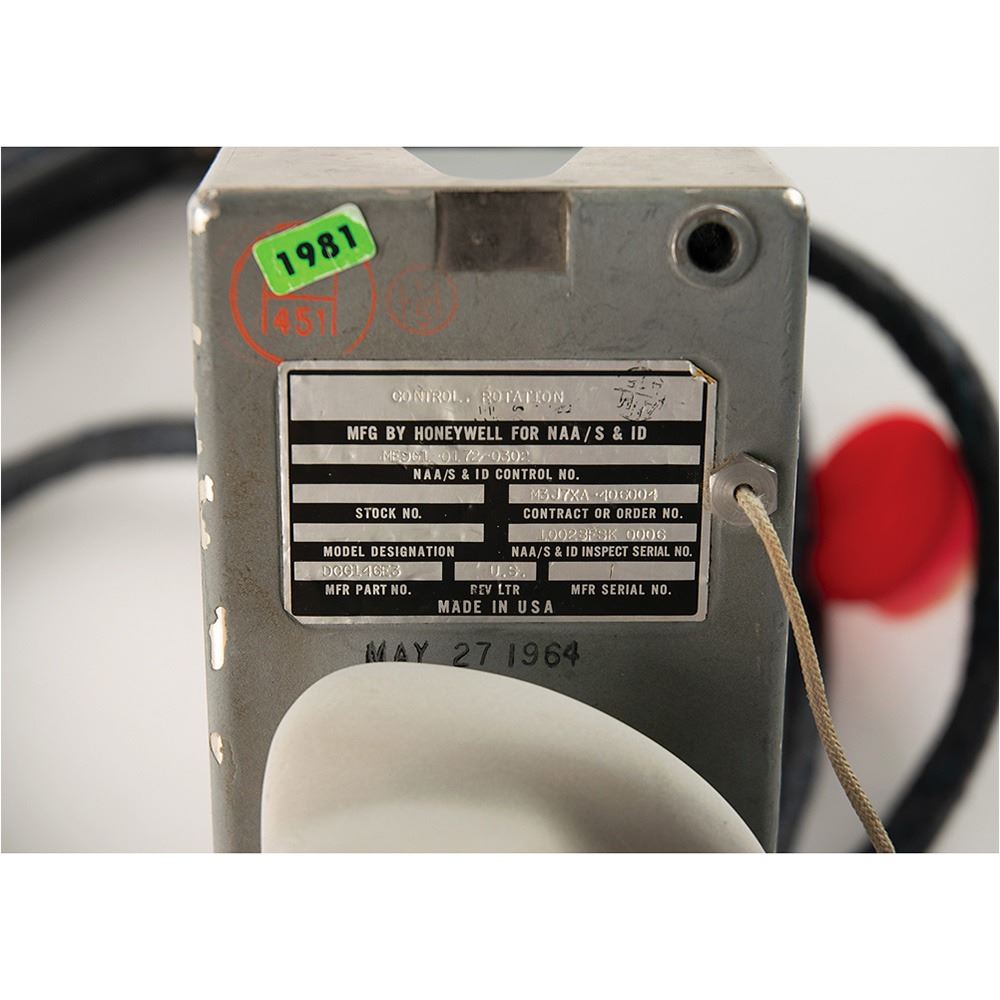

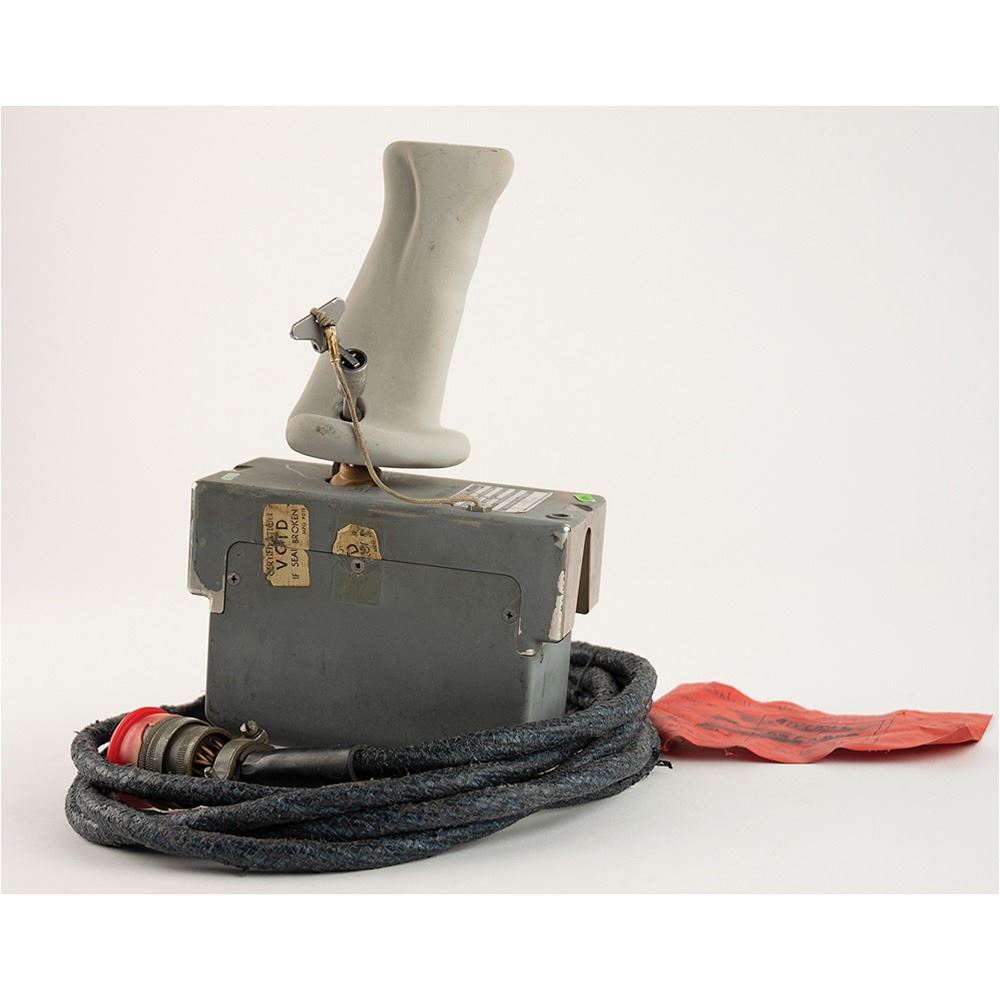

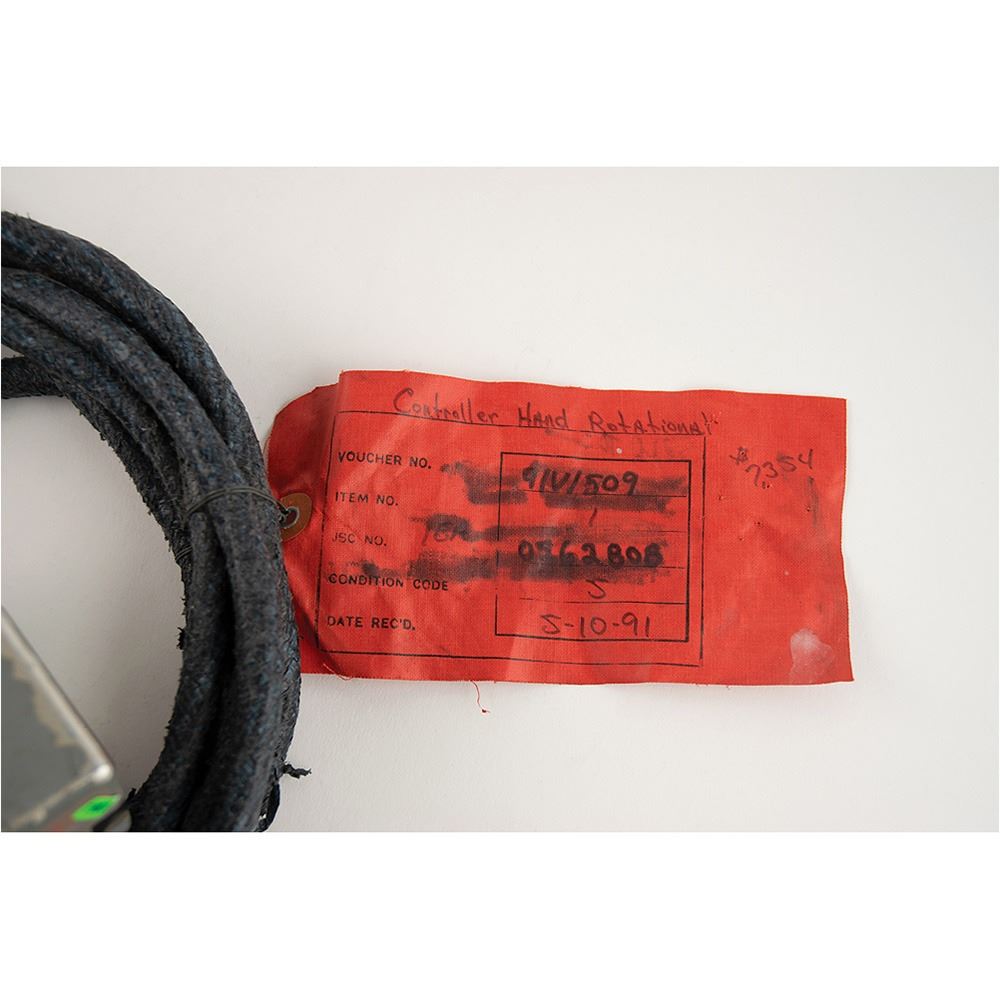

Apollo Command Module Block I Rotational Hand Controller (RHC) in its gray housing, measuring an overall 5.75˝ x 9˝ x 2.75˝, with the original umbilical cable extending from the bottom of the unit. The housing retains its original Honeywell label, reading: "Control, Rotation, Mfg by Honeywell for NAA/S & ID, NAA/S & ID Control No. ME901-0172-0302, Contract or Order No. M3J7XA-406004, NAA/S & ID Inspect Serial No. 10028FSK 0006, Mfr Part No. DCG146E3," with date stamped below, "May 27, 1964." Complete with its spring-loaded hand controller joystick providing three-axis attitude control: the handle pivots at the palm for pitch up/down, swivels at the handle for yaw left/right, and sways side-to-side for roll left/right. Retains its locking pin at the base, designed to prevent inadvertent activation during nonoperating periods. A later red deaccession tag is attached to the umbilical cable. This was presumably an engineering test unit used by North American Aviation, the prime contractor for the Block I CSM.

In NASA's technical note on Spacecraft Hand Controller Development, the Block I RHC is described as 'a small, simple, compact, three-axis controller with three switches and a linear transformer output (rotary variable-differential transformer (RVDT)) in each axis. A quick-disconnect dovetail mounting bracket and a long cable permitted relocation of the controller within the spacecraft. The RHC, although designed for right-hand use only, could be transferred to the navigation station or to another crewman's couch. This handle was designed without spacecraft communications push-to-talk switches.' The Block II redesign improved upon the same basic design parameters, adding a push-to-talk switch and more internal precision switches.

While we have sold a few Block II rotational hand controllers, this is the first Block I example we have ever seen—it is a scarce and important piece of early Apollo hardware.
