Apollo CM Flight Director Attitude Indicator

Currency:USD Category:Collectibles / Autographs Start Price:NA Estimated At:30,000.00 - 35,000.00 USD
Apollo CM Flight Director Attitude Indicator

Bidding Over

The auction is over for this lot.
The auctioneer wasn't accepting online bids for this lot.

Contact the auctioneer for information on the auction results.

Search for other lots to bid on...
Auction Date:2021 Oct 21 @ 18:00 (UTC-05:00 : EST/CDT)
Location:15th Floor WeWork, Boston, Massachusetts, 02108, United States
ALS - Autograph Letter Signed
ANS - Autograph Note Signed
AQS - Autograph Quotation Signed
AMQS - Autograph Musical Quotation Signed
DS - Document Signed
FDC - First Day Cover
Inscribed - “Personalized”
ISP - Inscribed Signed Photograph
LS - Letter Signed
SP - Signed Photograph
TLS - Typed Letter Signed

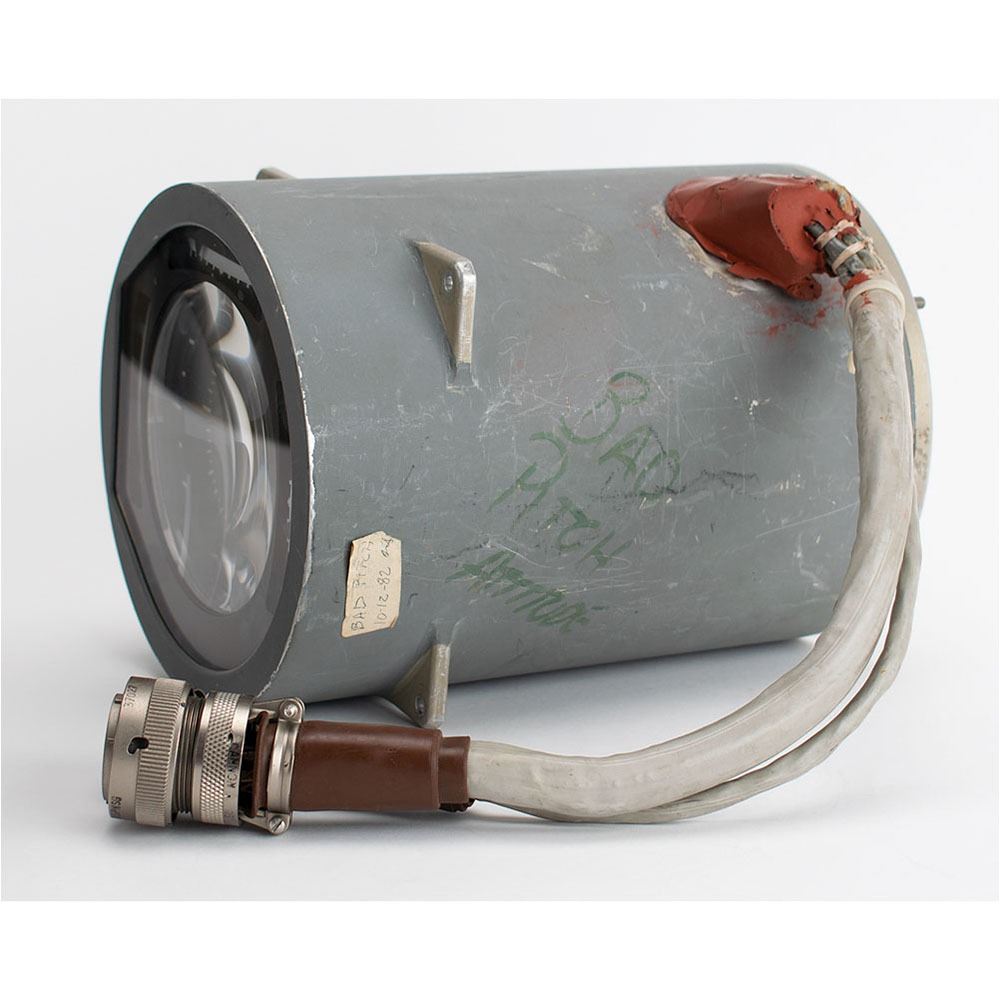

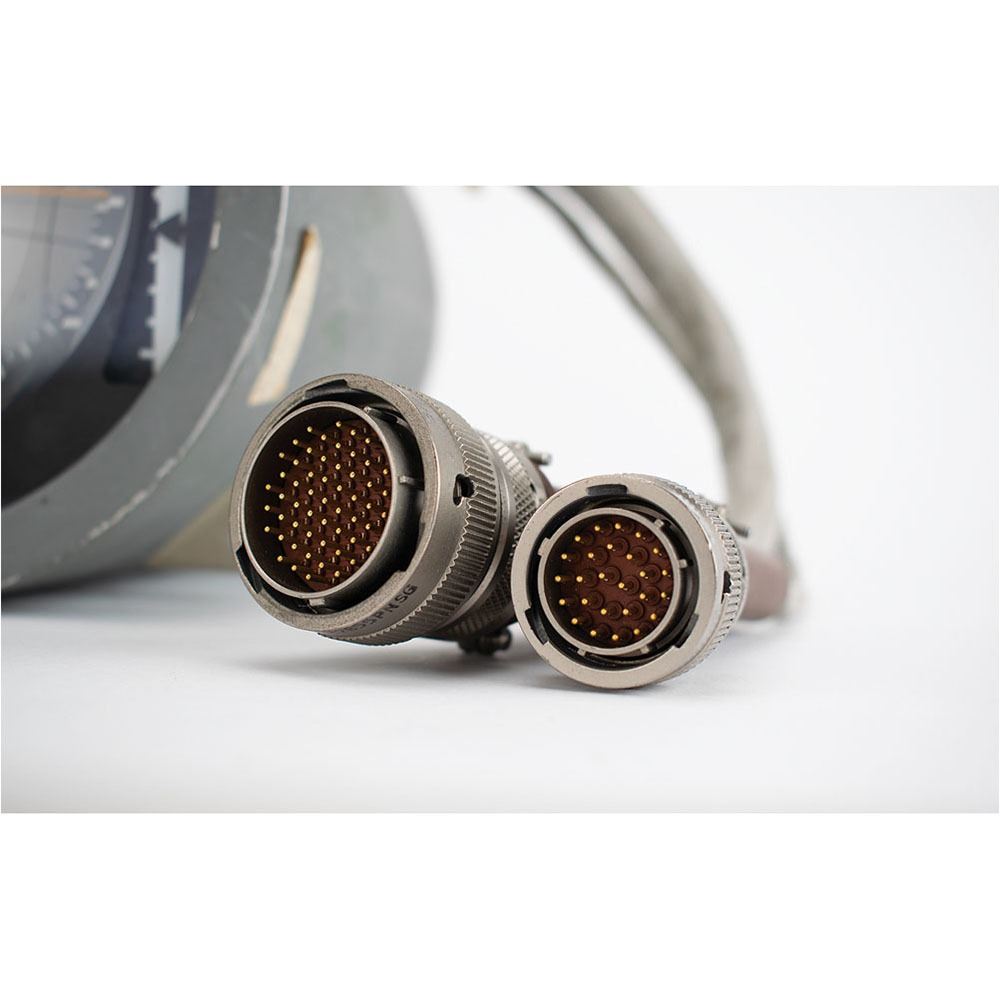

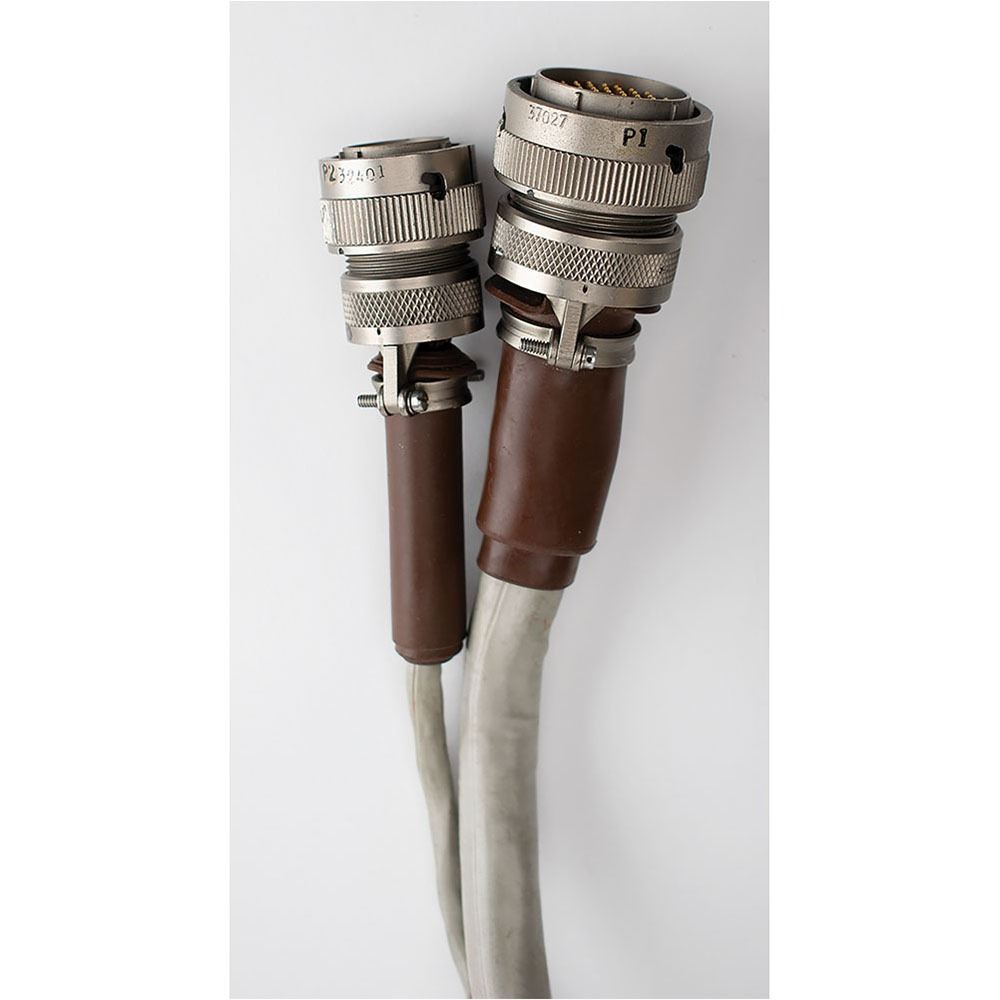

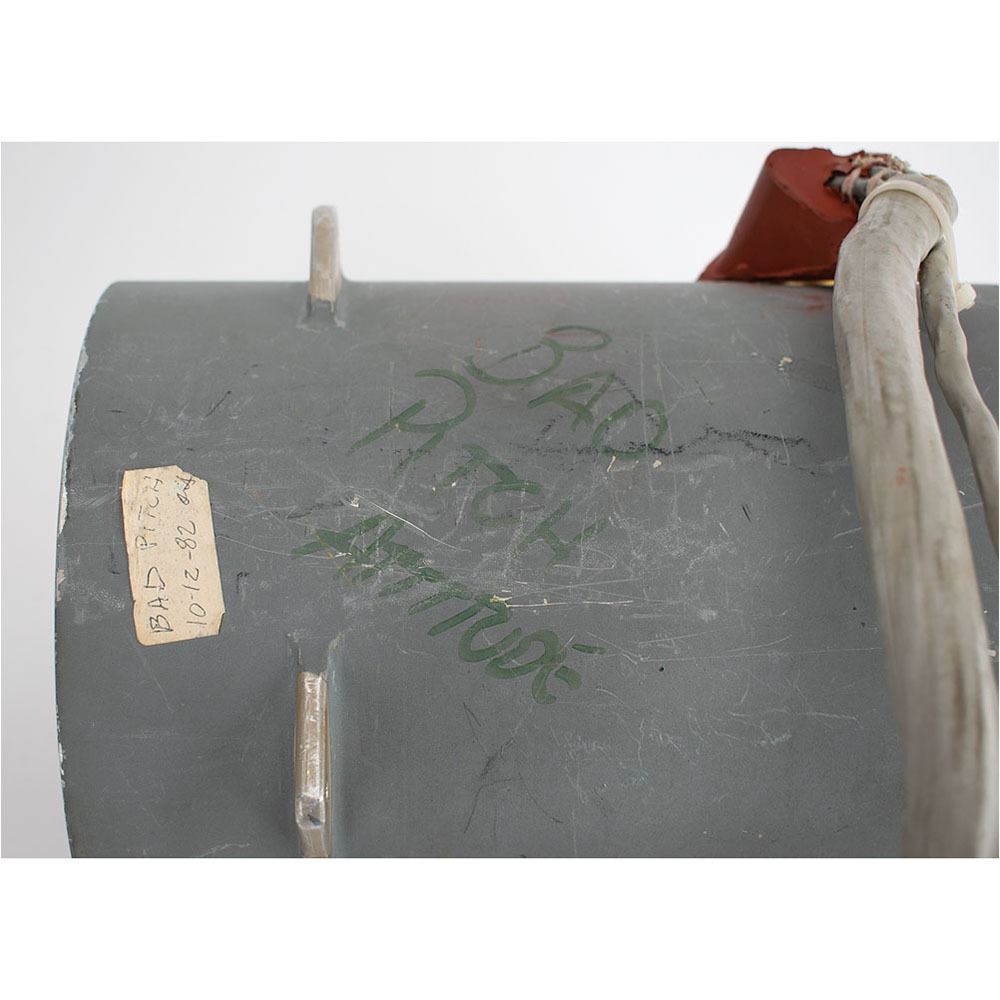

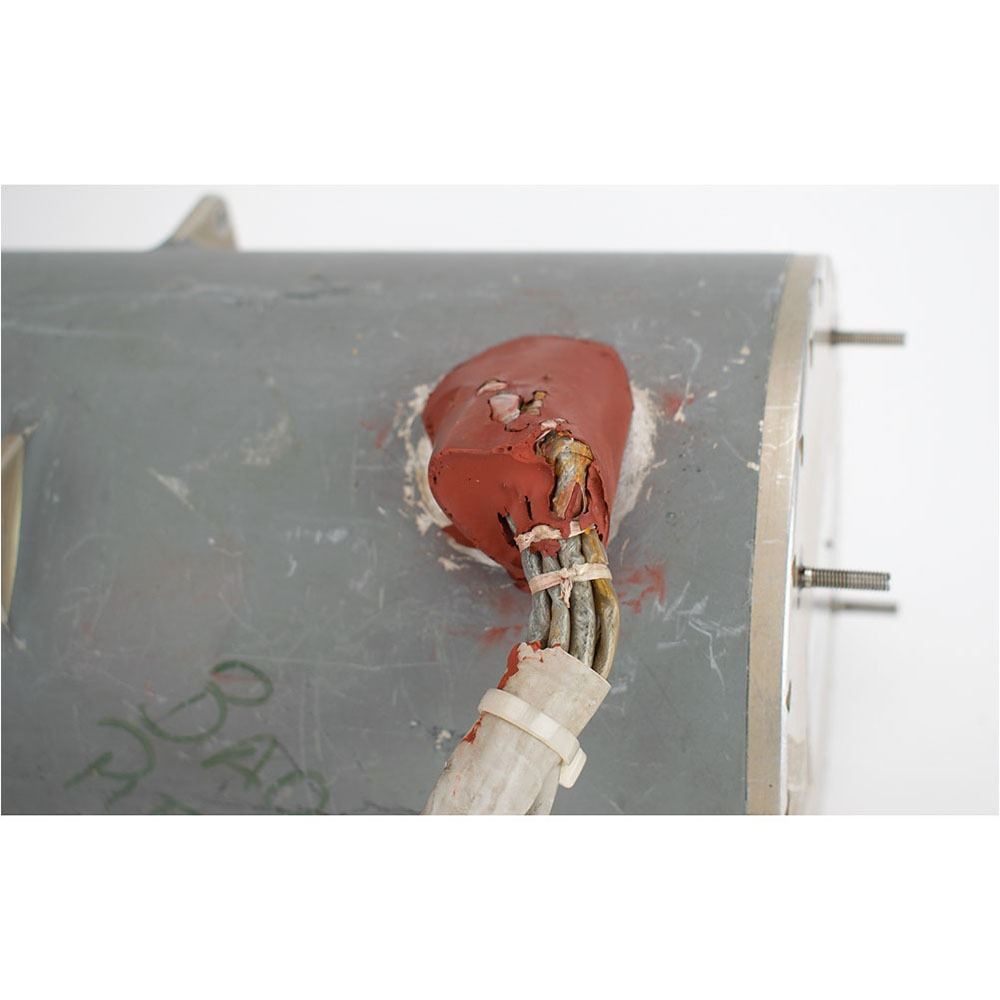

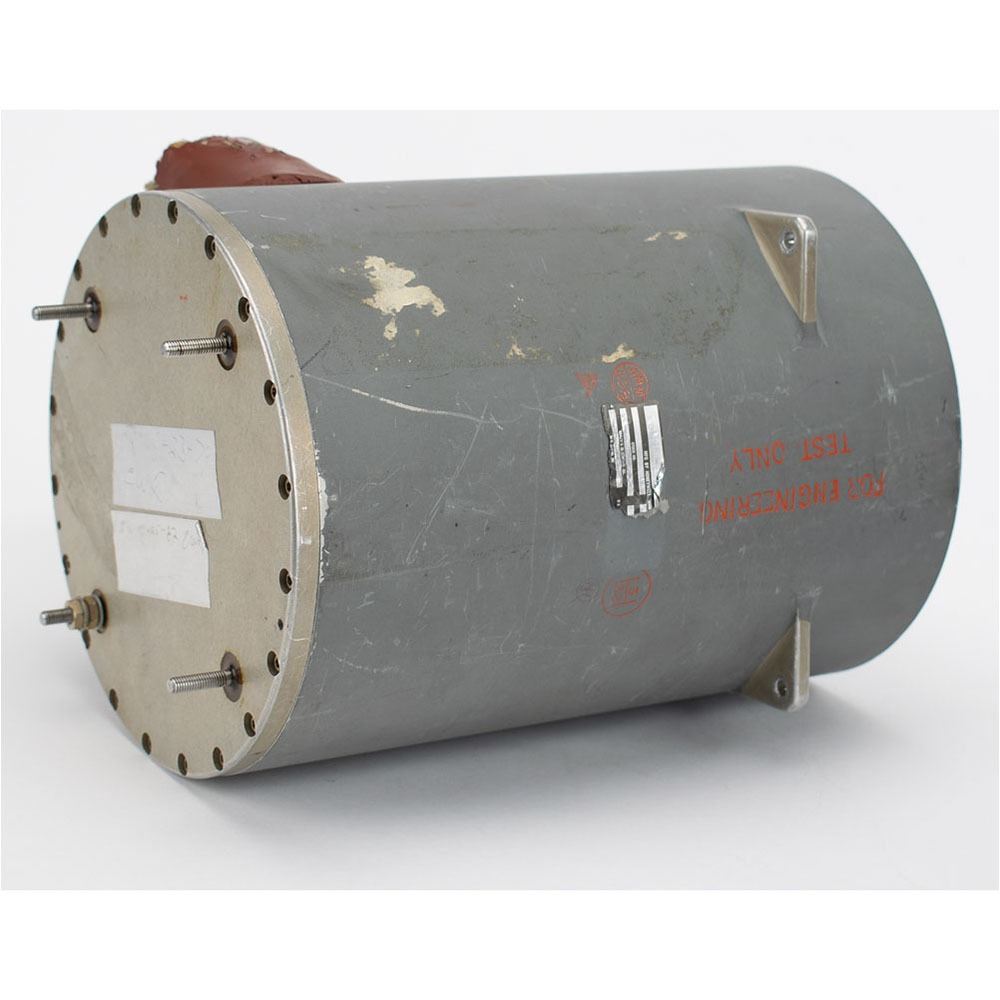

Apollo Command Module Flight Director Attitude Indicator (FDAI), commonly called the '8 ball,' measuring 7è in diameter and 10è long, with a partially intact Honeywell label on the side: "Indicator, Attitude Flight [Director], NAA/S & ID Control No. ME432-0168-0011;" the manufacturer's serial number is difficult to discern, but appears to read "10028FSN000[?]." The unit is marked on the housing in orange, "For Engineering Test Only," retains its two umbilical cables, and has several research and development notes on the body: "Bad Pitch Attitude" is written in felt tip on the side; a white label reads, "Bad Pitch, 10-12-82"; and pieces of aluminized tape applied to the bottom read: "OK 8-23-79" and "OK 10-25-82."

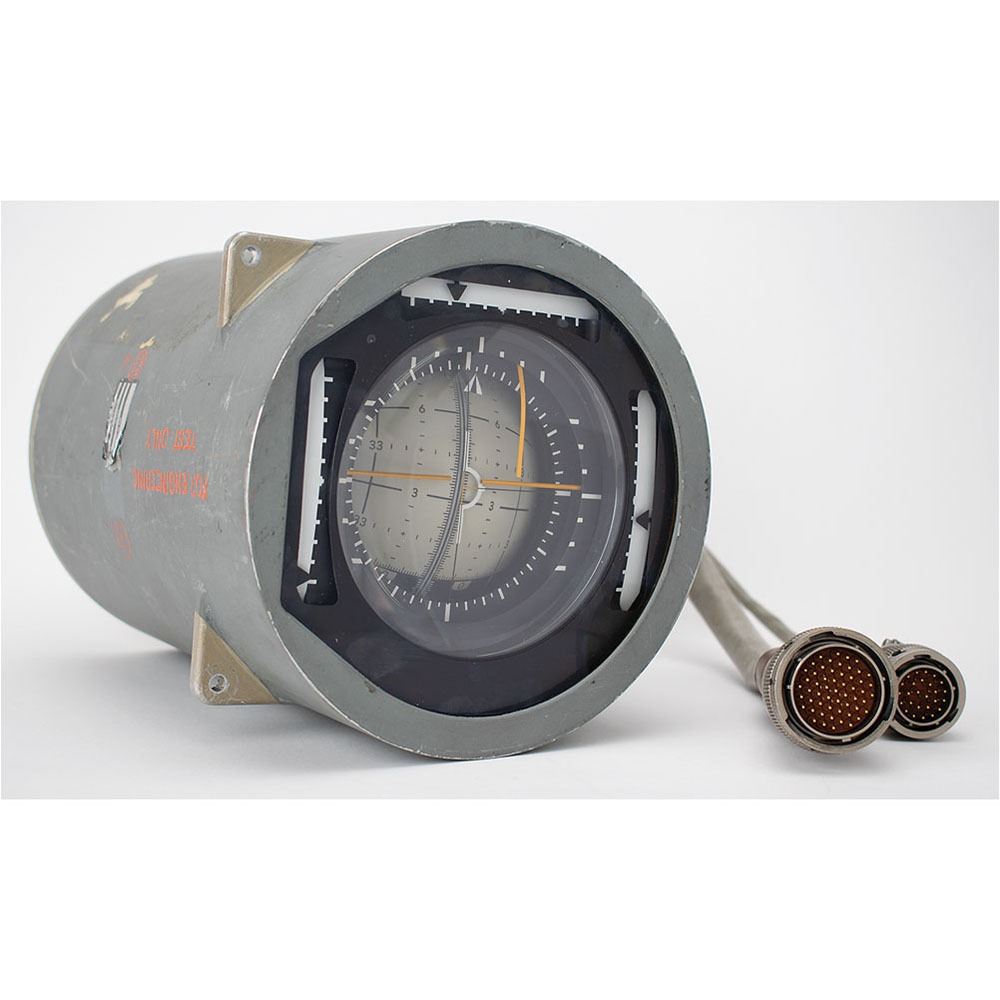

Inside the Command Module, the red, black, and white ‰Û÷8 ball‰Ûª was used to define the relative position of the spacecraft in three-dimensional space. Pitch and yaw can be read off the ball directly; roll is shown by a pointer around the edge of the 8-ball. Three meters around the display show the rate of rotation around the three axes. Three additional yellow needles in front of the ball graphically display the difference between the current and desired attitude of the spacecraft. Originally designed to be three different panel instruments, the astronauts, many of whom were pilots, lobbied for an all-in-one device similar to the artificial horizon indicator in airplanes.

The later markings and notations on this engineering test unit are likely associated with the early Space Shuttle program; the Lunar Module FDAI was ultimately adapted for implementation on the Orbiters. A distinctive and important navigational instrument from the legendary Apollo spacecraft.
