Exceptional Burnside Civil War Carbine

Currency:USD Category:Antiques / Firearms & Armory Start Price:0.00 USD Estimated At:5,500.00 - 8,500.00 USD
Exceptional Burnside Civil War Carbine

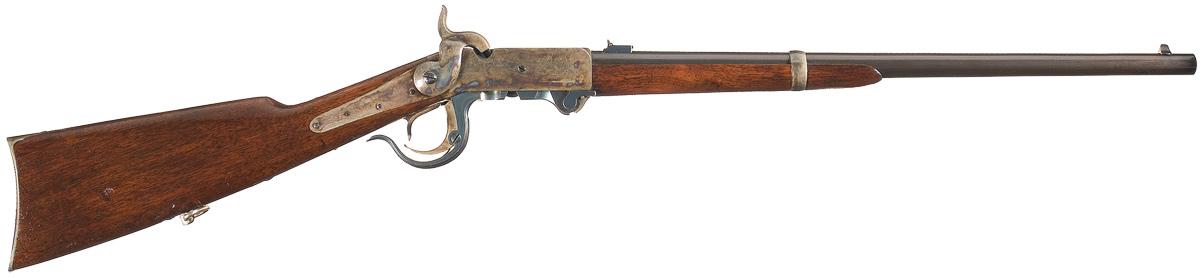

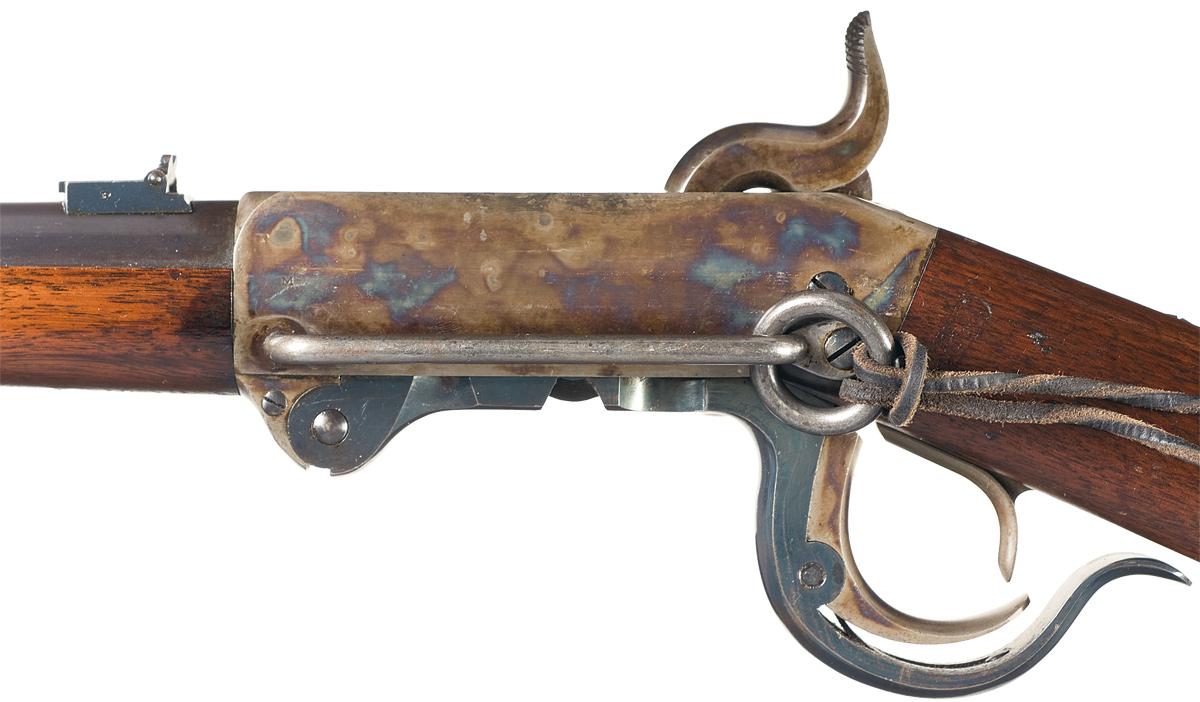

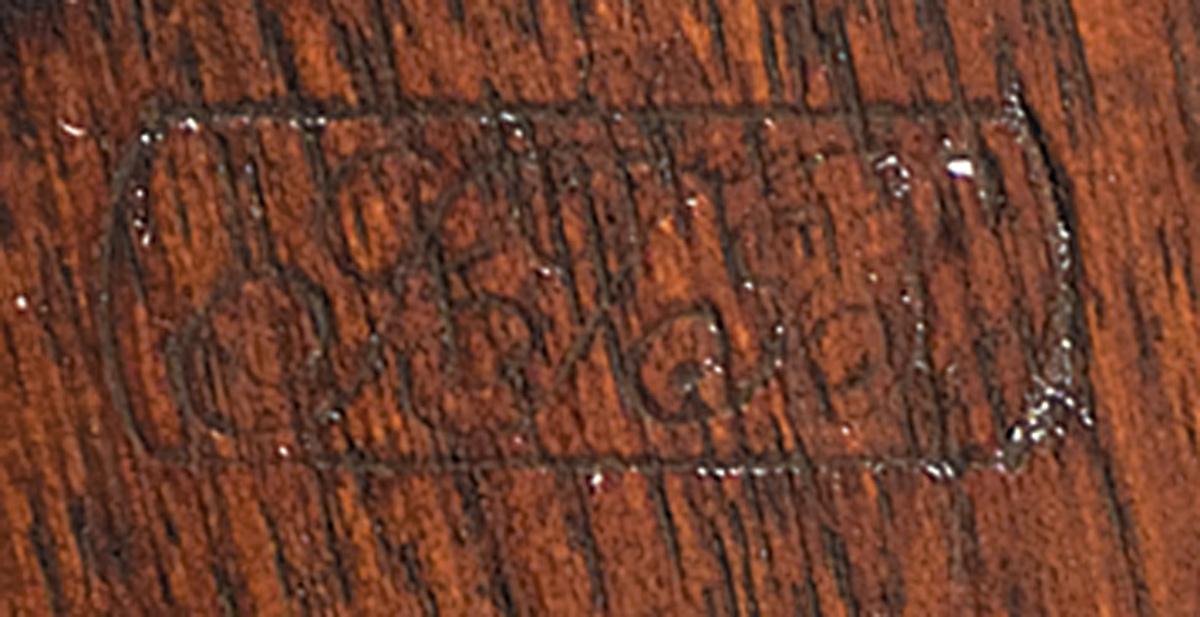

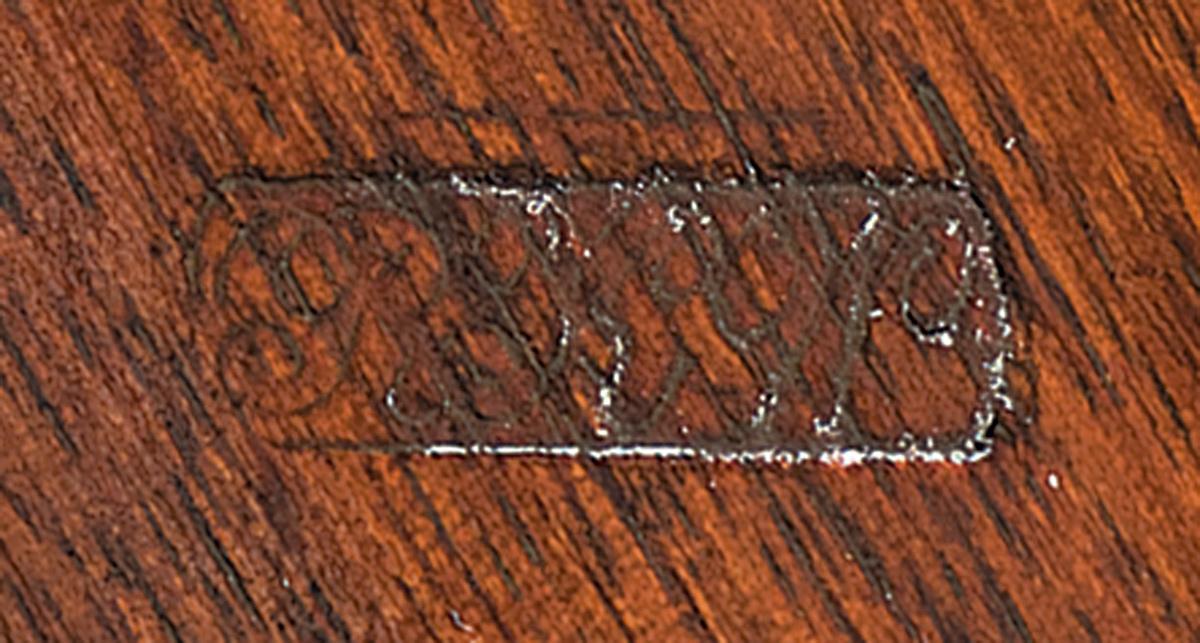

This is an unissued original example of a Burnside Model 1864 Civil War carbine. This carbine has the distinctive guide screw in the right side of the receiver and the Model 1864 marking that distinguishes the 5th Model Carbines from earlier Burnside Carbines. The carbine has a dull blue finish on the barrel and bright blue tangs, trigger guard, action lever, lever catch and sights. The barrel band, frame, hammer, lock plate, breechblock and buttplate are casehardened. The stock and forearm are oil-finished black walnut. The barrel is fitted with a pinched blade front sight and two-leaf, folding rear sight graduated to 500 yards. A sling bar and ring are located on the left side of the frame. The top of the barrel is marked: "CAST STEEL 1864". The top of the frame is marked: "BURNSIDE PATENT / MODEL OF 1864" over the serial number, the top of the breechblock is marked with the matching serial number and the lock is marked "BURNSIDE RIFLE CO. / PROVIDENCE RI." behind the hammer. Small, single initial sub-inspector's marks ("W", "B" and "P") are stamped on many components. Two boxed script inspector's cartouches, "STB" and "RKW", are stamped on the left side of the stock wrist. Approximately 43,000 5th Model Burnside Carbines were procured by the U.S. Army from 1863-65. The Burnside carbine was one of larger production Federal cavalry weapons.
BBL: 21 inch round
Stock: walnut
Gauge: 54 percussion
Finish: blue/casehardened
Grips:
Serial Number: 17447
Condition: Excellent plus. The carbine retains 98% of the original blue on the barrel and 99% vivid original case colors on the receiver, lock, hammer and lever catch. The stock and forearm remain excellent with a moderate dent on the right side of the stock, a few small gouges on the left side of the forearm and overall a few minor dents and dings. The inspector's stamps on the stock wrist are extremely crisp. The markings are crisp and clear. Mechanically excellent. This is an exceptional unissued example of an important Federal Civil War cavalry carbine.
